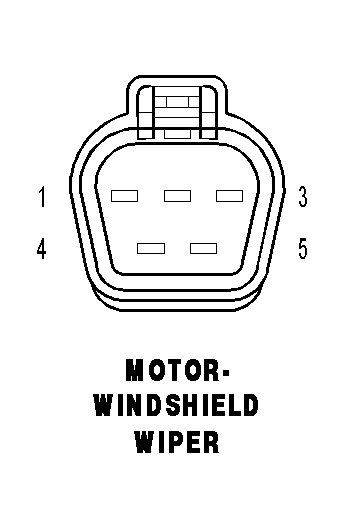

Windshield Wiper Motor Connector End View
MOTOR-WINDSHIELD WIPER - 5 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | W7 20BR/GY (LHD/SRT8) | FRONT WIPER PARK SWITCH SENSE |
| 1 | W3 16BR/WT (RHD EXCEPT SRT8) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 2 | - | - |
| 3 | W4 16BR/OR (LHD/SRT8) | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 3 | W7 20BR/GY (RHD EXCEPT SRT8) | FRONT WIPER PARK SWITCH SENSE |
| 4 | Z103 16BK/WT (LHD/SRT8) | GROUND |
| 4 | W4 16BR/OR (RHD EXCEPT SRT8) | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 5 | W3 16BR/WT (LHD/SRT8) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 5 | Z103 16BK/WT (RHD EXCEPT SRT8) | GROUND |
