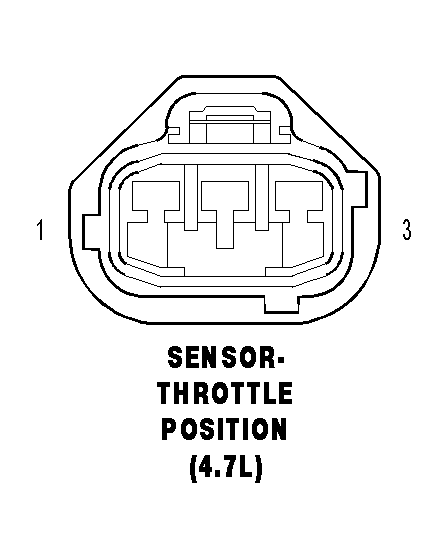

Throttle Position Sensor (4.7L) Connector End View

SENSOR-THROTTLE POSITION (4.7L) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F855 20PK/YL	5 VOLT SUPPLY
2	K22 18BR/OR	TP NO. 1 SIGNAL
3	K900 20DB/DG	SENSOR GROUND
