Security Hood Switch (Export) Connector End View

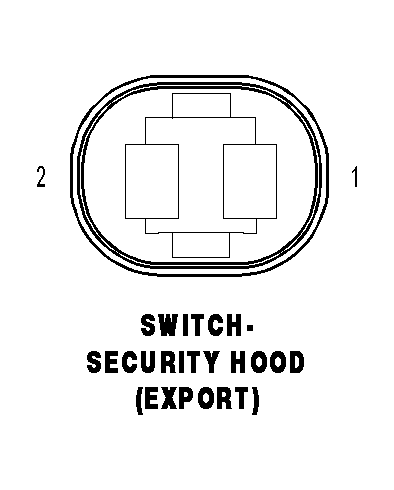

SWITCH-SECURITY HOOD (EXPORT) - 2 WAY

GCWH680441Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 G70 20VT/LB HOOD AJAR SWITCH SENSE
2 Z384 20BK GROUND
