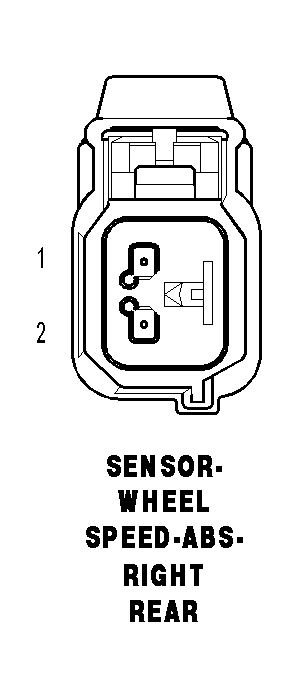

Right Rear Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-RIGHT REAR - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B2 20DG/LB (EXPORT EXCEPT REAR PARK ASSIST) |
RIGHT REAR WHEEL SPEED SENSOR SUPPLY |
| 1 |
B2 20DG/WT (EXCEPT EXPORT/EXPORT REAR PARK ASSIST) |
RIGHT REAR WHEEL SPEED SENSOR SUPPLY |
| 2 |
B1 20DG/DB |
RIGHT REAR WHEEL SPEED SENSOR SIGNAL |
