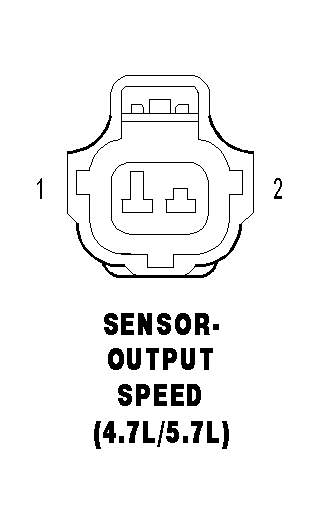

Output Speed Sensor (4.7L/5.7L) Connector End View

SENSOR-OUTPUT SPEED (4.7L/5.7L) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T14 20DG/BR	OUTPUT SPEED SENSOR SIGNAL
2	T13 20DG/VT	SENSOR GROUND
