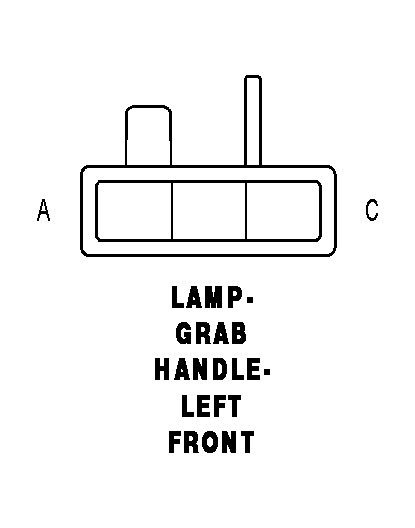

Left Front Grab Handle Lamp Connector End View

LAMP-GRAB HANDLE-LEFT FRONT - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	M22 20YL/OR	COURTESY LAMPS DRIVER
B	A931 20RD	FUSED B(+)
C	M28 20YL/TN	GLOVE BOX LAMP DRIVER
