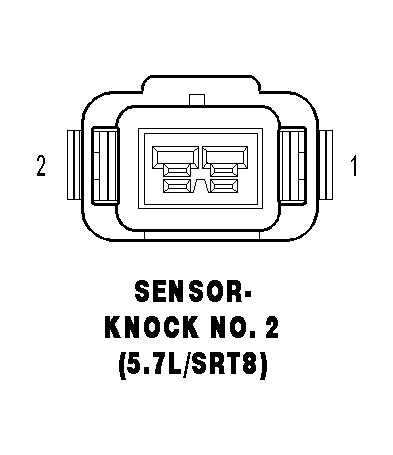

Knock Sensor 2 (5.7L/SRT8) Connector End View

SENSOR-KNOCK NO. 2 (5.7L/SRT8) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K242 20OR/WT	KNOCK SENSOR NO. 2 SIGNAL
2	K924 20WT/BR	KNOCK SENSOR NO. 2 RETURN
