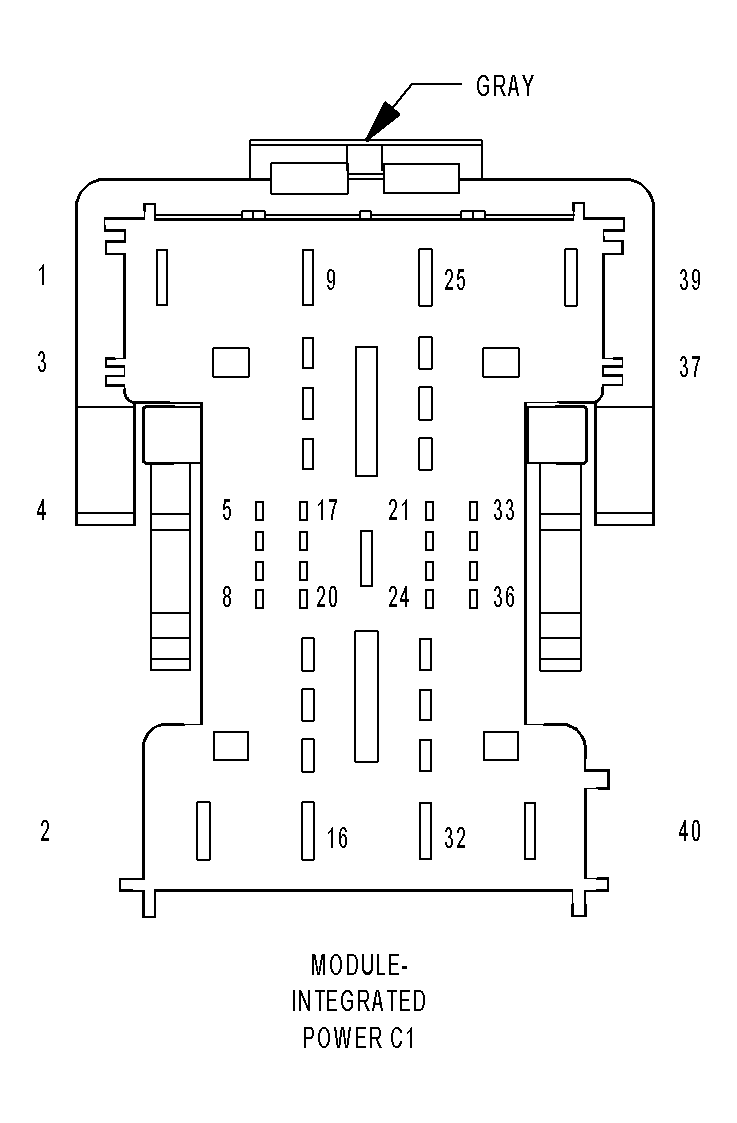

Integrated Power Module Connector End View (C1)
MODULE-INTEGRATED POWER C1 - GRAY 40 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A118 16RD/OR | FUSED B(+) |
| 2 | A909 14RD | FUSED B(+) |
| 3 | - | - |
| 4 | - | - |
| 5 | L778 20WT/DB | FUSED PARK LAMP RELAY OUTPUT |
| 6 | L778 20WT/DB | FUSED PARK LAMP RELAY OUTPUT |
| 7 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 8 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 9 | N23 10DB/DG (3.7L/4.7L/SRT8) | HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 10 | W7 20BR/GY | FRONT WIPER PARK SWITCH SENSE |
| 11 | F20 20PK/GY | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 12 | F944 18PK/TN (EXCEPT SRT8) | IGNITION SWITCH OUTPUT (RUN-START) |
| 12 | F944 18PK/LG (SRT8) | IGNITION SWITCH OUTPUT (RUN-START) |
| 13 | L76 18WT/BR (TRAILER TOW) | FUSED PARK LAMP RELAY OUTPUT |
| 14 | A114 18GY/RD (EXPORT EXCEPT SRT8) | FUSED B(+) |
| 15 | Z387 18BK | GROUND |
| 16 | L614 18WT/DB | TRAILER TOW TURN SIGNAL |
| 17 | L778 20WT/DB | FUSED PARK LAMP RELAY OUTPUT |
| 18 | C918 20BK/LB | FCM SENSOR RETURN |
| 19 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | L62 18WT/OR | RIGHT REAR TURN SIGNAL CONTROL |
| 24 | K361 20BR/WT (DIESEL) | PTC NO. 2 RELAY CONTROL |
| 24 | K617 20BR/PK (GAS EXCEPT SRT8) | PTC NO. 2 RELAY CONTROL |
| 25 | N24 10DG/DB (3.7L/4.7L/SRT8) | LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 26 | F100 20PK/VT | FUSED RUN RELAY OUTPUT |
| 27 | F923 14PK/YL | RUN RELAY OUTPUT |
| 28 | Z131 18BK/DG | GROUND |
| 29 | W10 20BR (DIESEL) | FRONT WASHER PUMP MOTOR CONTROL |
| 29 | W10 18BR (GAS) | FRONT WASHER PUMP MOTOR CONTROL |
| 30 | K360 20GY/BR (DIESEL) | PTC NO. 1 RELAY CONTROL |
| 31 | W20 20BR/YL (DIESEL) | REAR WASHER PUMP MOTOR CONTROL |
| 31 | W20 18BR/YL (GAS) | REAR WASHER PUMP MOTOR CONTROL |
| 32 | A15 16RD/TN | FUSED ASD RELAY OUTPUT |
| 33 | A109 16OR/RD (DIESEL/SRT8) | FUEL PUMP RELAY OUTPUT |
| 33 | A109 16TN/RD (GAS EXCEPT SRT8) | FUEL PUMP RELAY OUTPUT |
| 34 | A109 16OR/RD | FUEL PUMP RELAY OUTPUT |
| 35 | - | - |
| 36 | F1 20PK/WT (DIESEL) | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 36 | F1 18PK/WT (GAS) | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 37 | - | - |
| 38 | - | - |
| 39 | Z387 18BK | GROUND |
| 40 | A114 18GY/RD | FUSED B(+) |
