Grand Cherokee Laredo, 3.0 M
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Horn Switch Connector End View
Horn Switch Connector End View

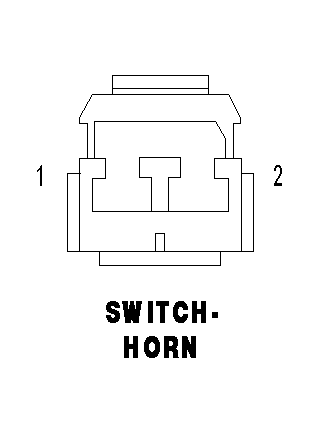

SWITCH-HORN - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
X3 20DG/VT
HORN SWITCH SIGNAL
2
X903 20GY/LG
HORN SWITCH RETURN
