Circuit Breaker 1 Connector End View

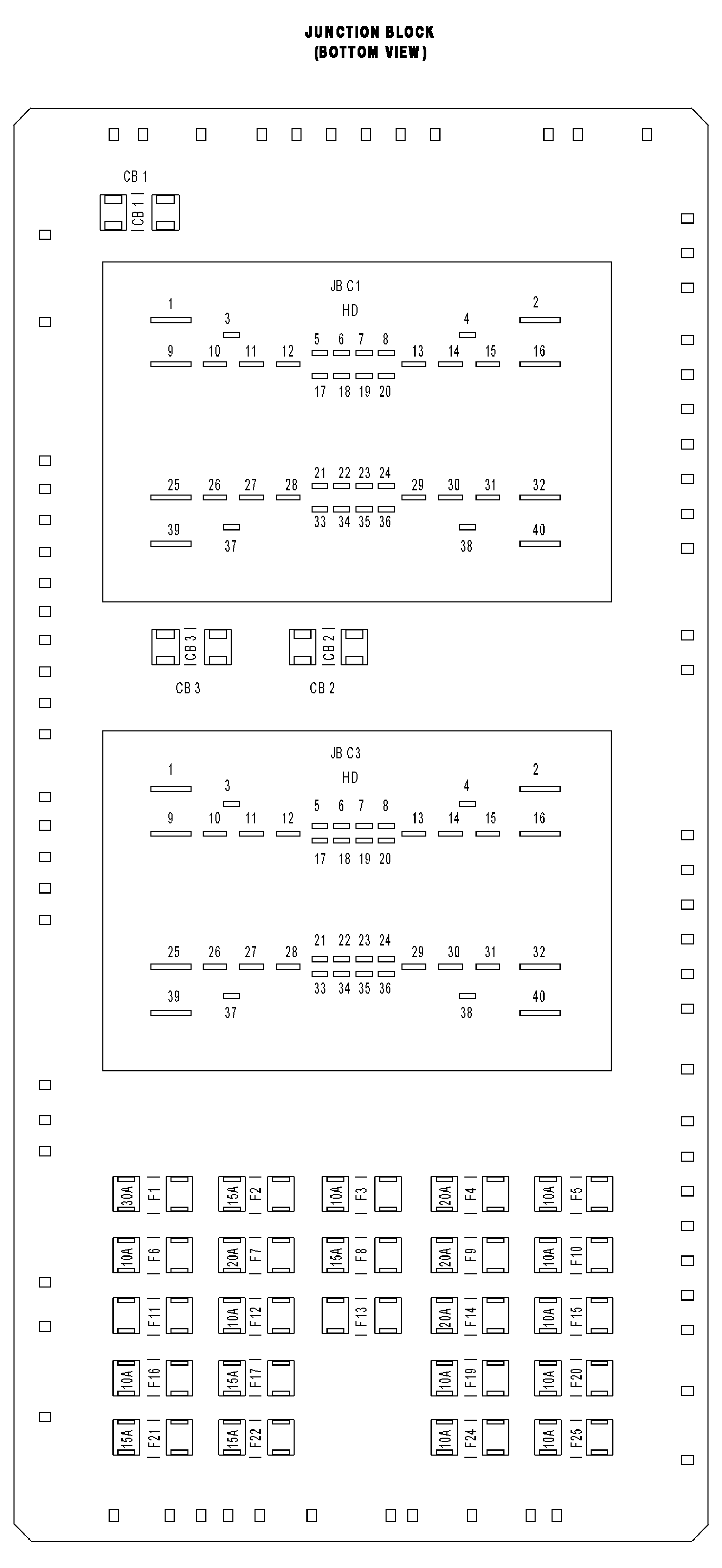

CIRCUIT BREAKER NO. 1 - 2 WAY

GCWH680099Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1   INTERNAL FUSED B(+)
2   INTERNAL FUSED B(+)
