Shift Crossover Shaft

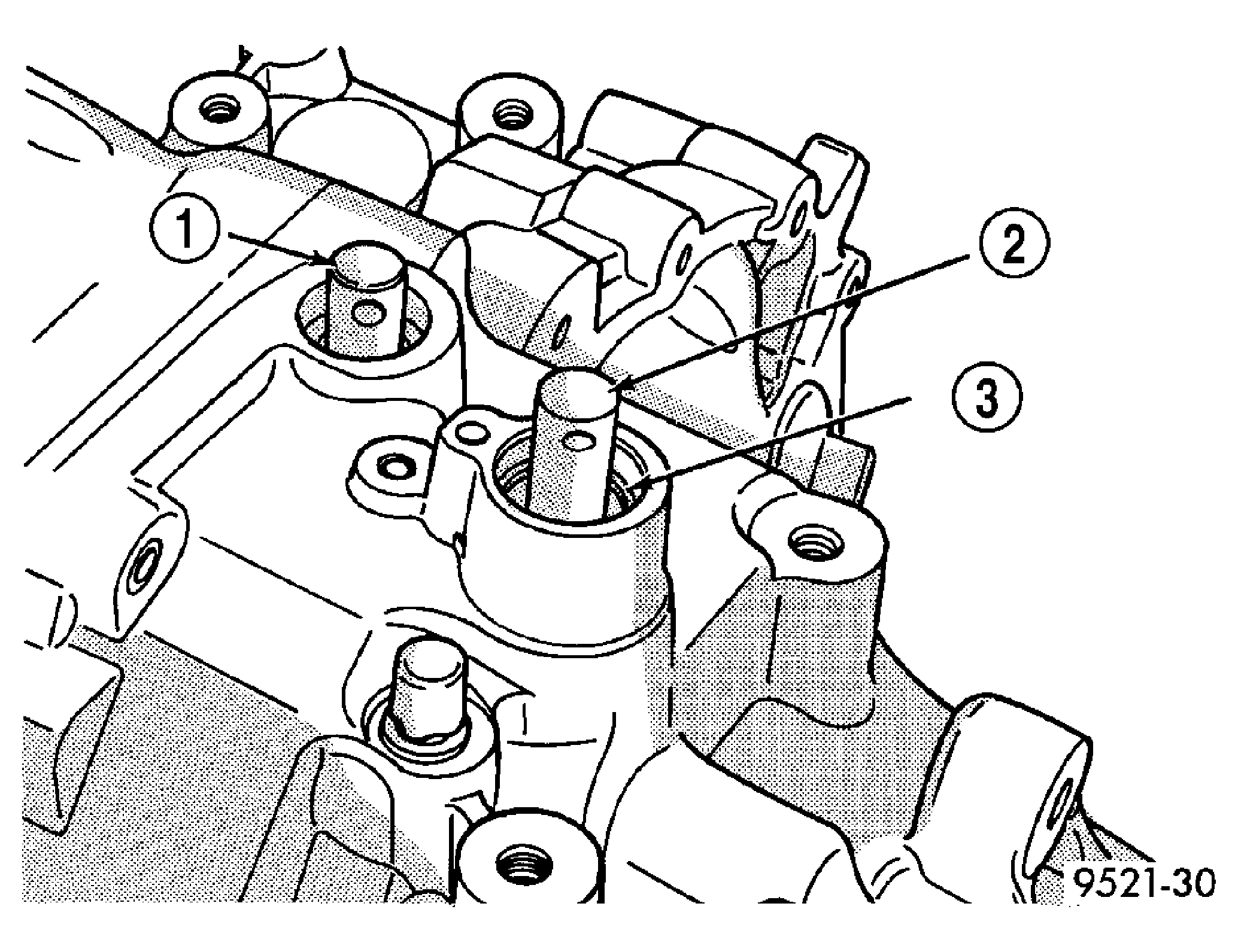

Fig 1: Crossover Shaft Snap Ring
GC0020176Courtesy of CHRYSLER LLC
1 - SELECTOR SHAFT
2 - CROSSOVER SHAFT
3 - SNAP RING
  1. Install select shaft to case and install snap ring (3). See Fig 1.
  2. Install the select shaft seal.
  3. Assemble transaxle.
