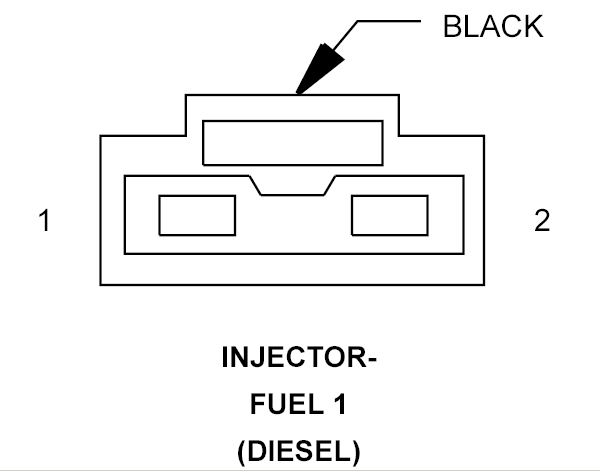

Fuel Injector 1 (Diesel) Connector End View

INJECTOR-FUEL 1 - BLACK 2 WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K663 16BR/YL	FUEL INJECTOR HIGH-SIDE COMMON
2	K611 16BR/RD	FUEL INJECTOR 1 LOW-SIDE CONTROL
