Valve Body

Fig 1: BUSHING AT THE CONTROL VALVE

Courtesy of CHRYSLER LLC

Remove and discard the bushing (1) from the valve body. See Fig 1.

Fig 2: LIP SEAL AT TRANSAXLE CASE
Courtesy of CHRYSLER LLC
Remove and discard the lip seal (1) from the transaxle case. See Fig 2.

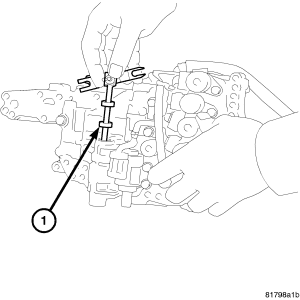

Fig 3: PULLEY RATIO LINKAGE
Courtesy of CHRYSLER LLC

CAUTION: Do not drop the pulley ratio linkage.
Remove the pulley ratio linkage (1) from the valve body. See Fig 3.

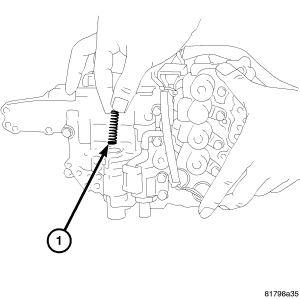

Fig 4: RETURN SPRING AT THE CONTROL VALVE
Courtesy of CHRYSLER LLC
Remove the return spring (1) from the valve body. See Fig 4.

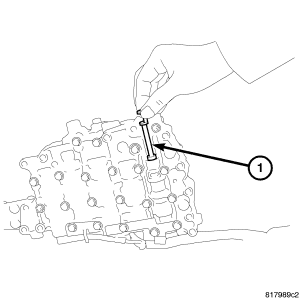

Fig 5: MANUAL VALVE
Courtesy of CHRYSLER LLC

CAUTION: Do not drop the manual valve.
Remove the manual valve (1) from the valve body. See Fig 5.

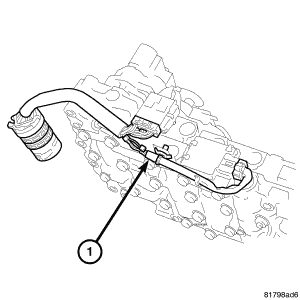

Fig 6: VALVE BODY HARNESS
Courtesy of CHRYSLER LLC
Remove the valve body harness (1) from the valve body. See Fig 6.

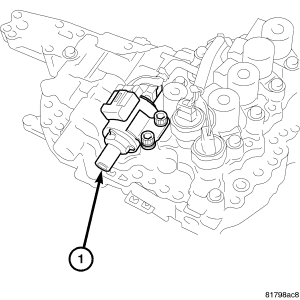

Fig 7: STEPPING MOTOR
Courtesy of CHRYSLER LLC
Remove the stepping motor (1) from the valve body. See Fig 7.
