Manifold Flow Valve

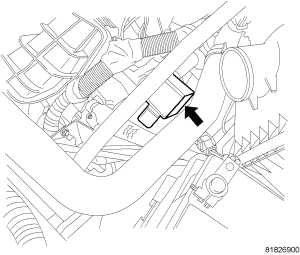

Fig 1: VALVE LOCATION
GC0055495Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove air tube.

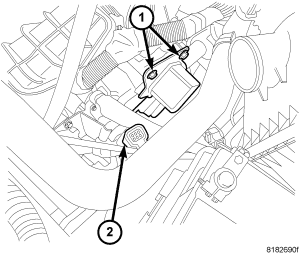

    Fig 2: ELECTRICAL CONNECTOR
    GC0055496Courtesy of CHRYSLER LLC
  3. Disconnect electrical connector.
    Fig 3: FLOW MANAGEMENT VALVE
    GC0055497Courtesy of CHRYSLER LLC
  4. Remove 3 mounting screws.

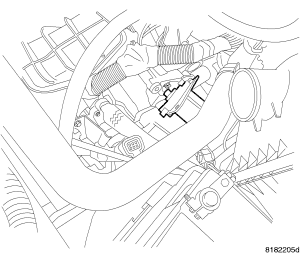

    Fig 4: VALVE LOCATION
    GC0055498Courtesy of CHRYSLER LLC
  5. Remove valve.
