Input Shaft

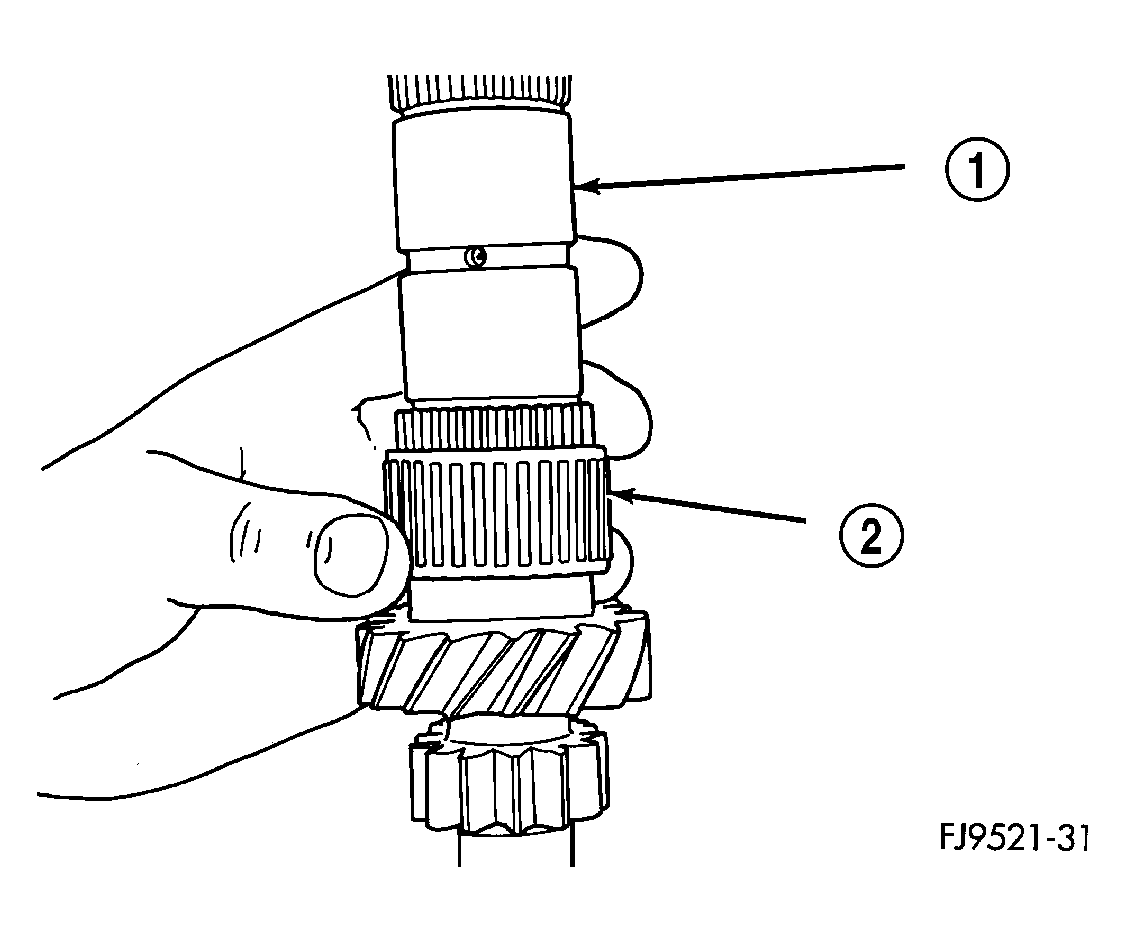

Fig 1: 3rd Gear Caged Needle Bearing
GC0020166Courtesy of CHRYSLER LLC
1 - INPUT SHAFT
2 - 3RD GEAR CAGED NEEDLE BEARING
  1. Place input shaft into shop press.
  2. Install 3rd gear caged needle bearing (2). See Fig 1.

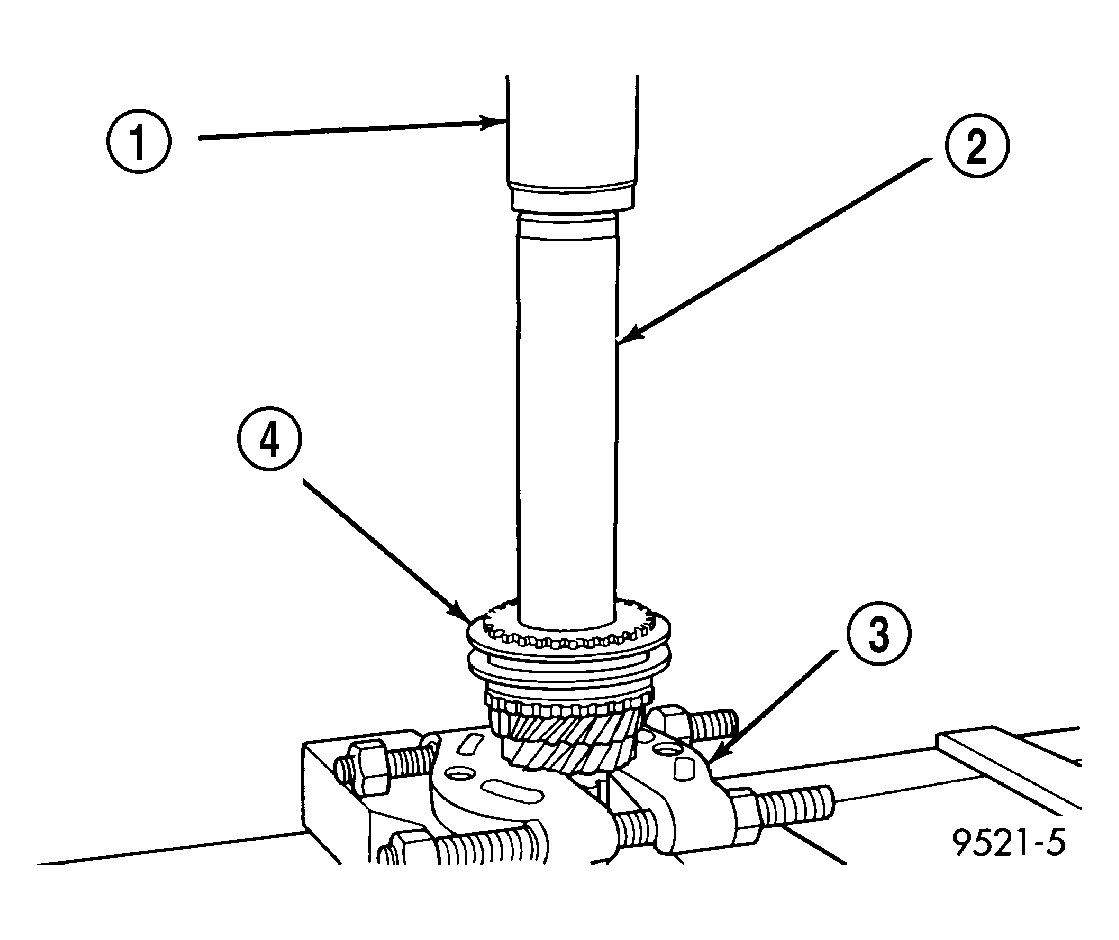

    Fig 2: Pressing On 3rd Gear Synchronizer Hub
    GC0020167Courtesy of CHRYSLER LLC
    1 - PRESS RAM
    2 - SLEEVE C-3717
    3 - BEARING SPLITTER
    4 - 3RD GEAR SYNCHRONIZER ASSEMBLY
  3. Install 3rd gear and 3-4 synchronizer (4) onto input shaft. Install Sleeve C-3717 (2) over input shaft and press on synchronizer hub and 3rd gear. The synchronizer hub has the letter See Fig 2. stamped on the top face of the hub. This designates that the hub must be installed with the facing upward.

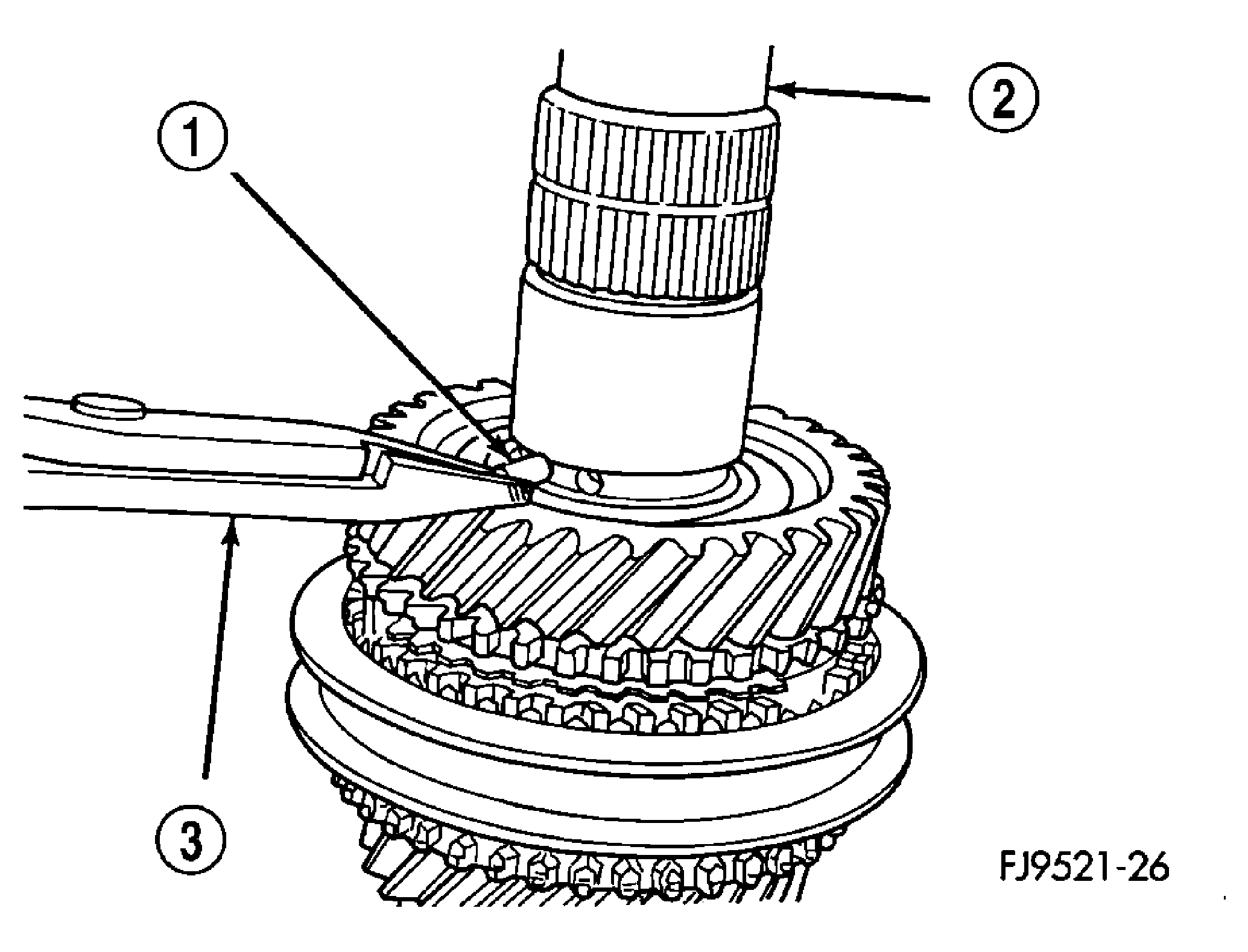

    Fig 3: Split Thrust Washer Separation Pin
    GC0020161Courtesy of CHRYSLER LLC
    1 - SEPARATION PIN
    2 - INPUT SHAFT
    3 - PLIERS
  4. Install a new  3-4 synchronizer snap ring into slot on input shaft.
  5. Install blocking ring into 3-4 synchronizer. Install 4th gear caged needle bearing.
  6. Install 4th gear onto input shaft.
  7. Install 4-5 split thrust washer separation pin (1). See Fig 3.

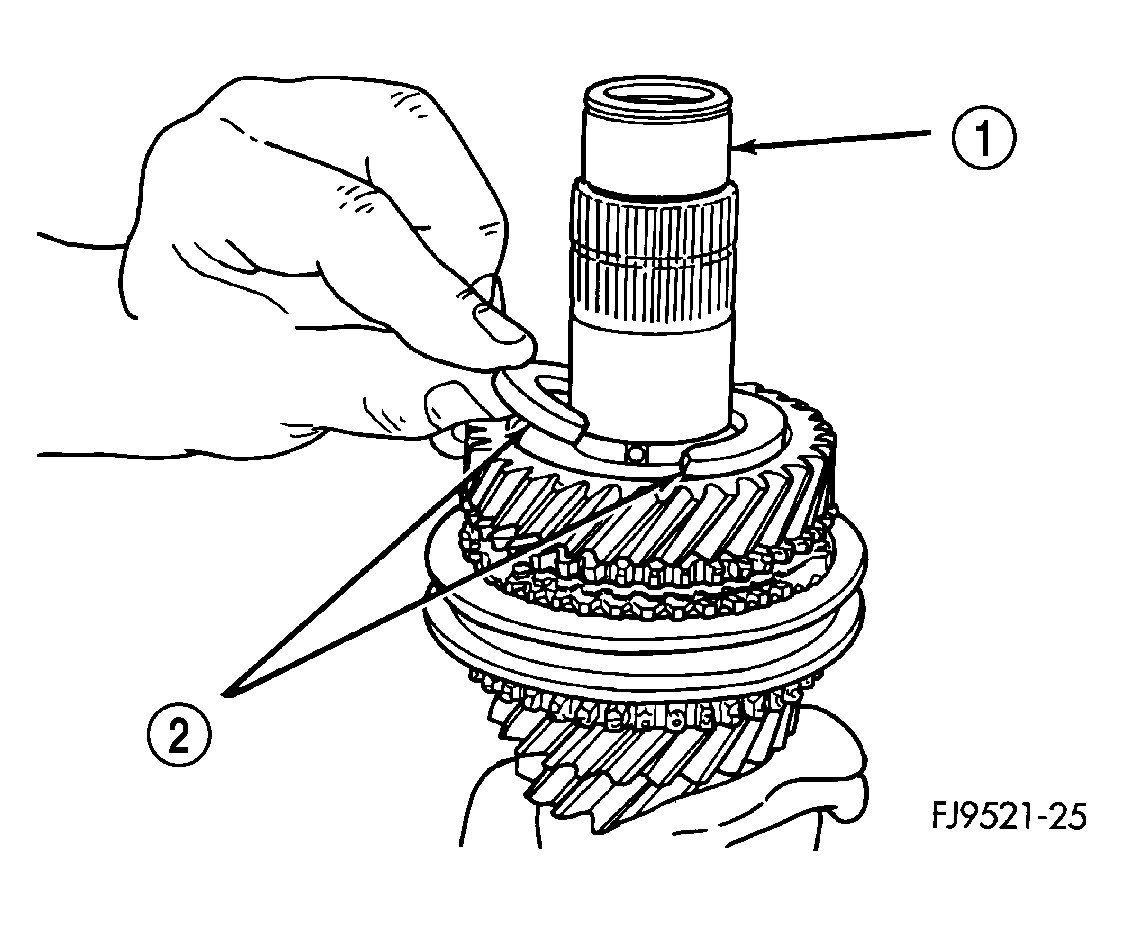

    Fig 4: Removing/Installing Split Thrust Washer
    GC0020160Courtesy of CHRYSLER LLC
    1 - INPUT SHAFT
    2 - SPLIT THRUST WASHER
  8. Install split thrust washer (2) onto input shaft (1). See Fig 4.

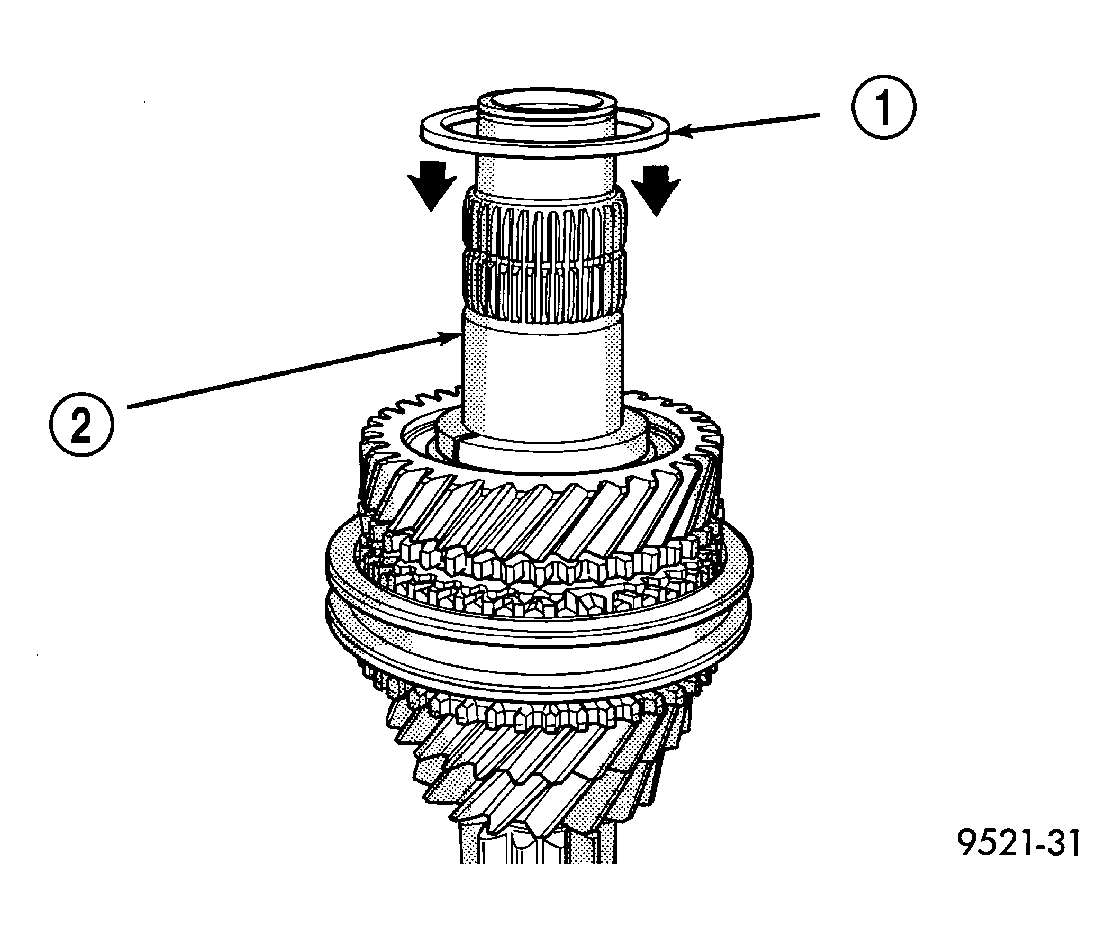

    Fig 5: Installing Retaining Ring
    GC0020168Courtesy of CHRYSLER LLC
    1 - SPLIT THRUST WASHER RING
    2 - INPUT SHAFT
  9. Install split thrust washer retaining ring (1). See Fig 5.

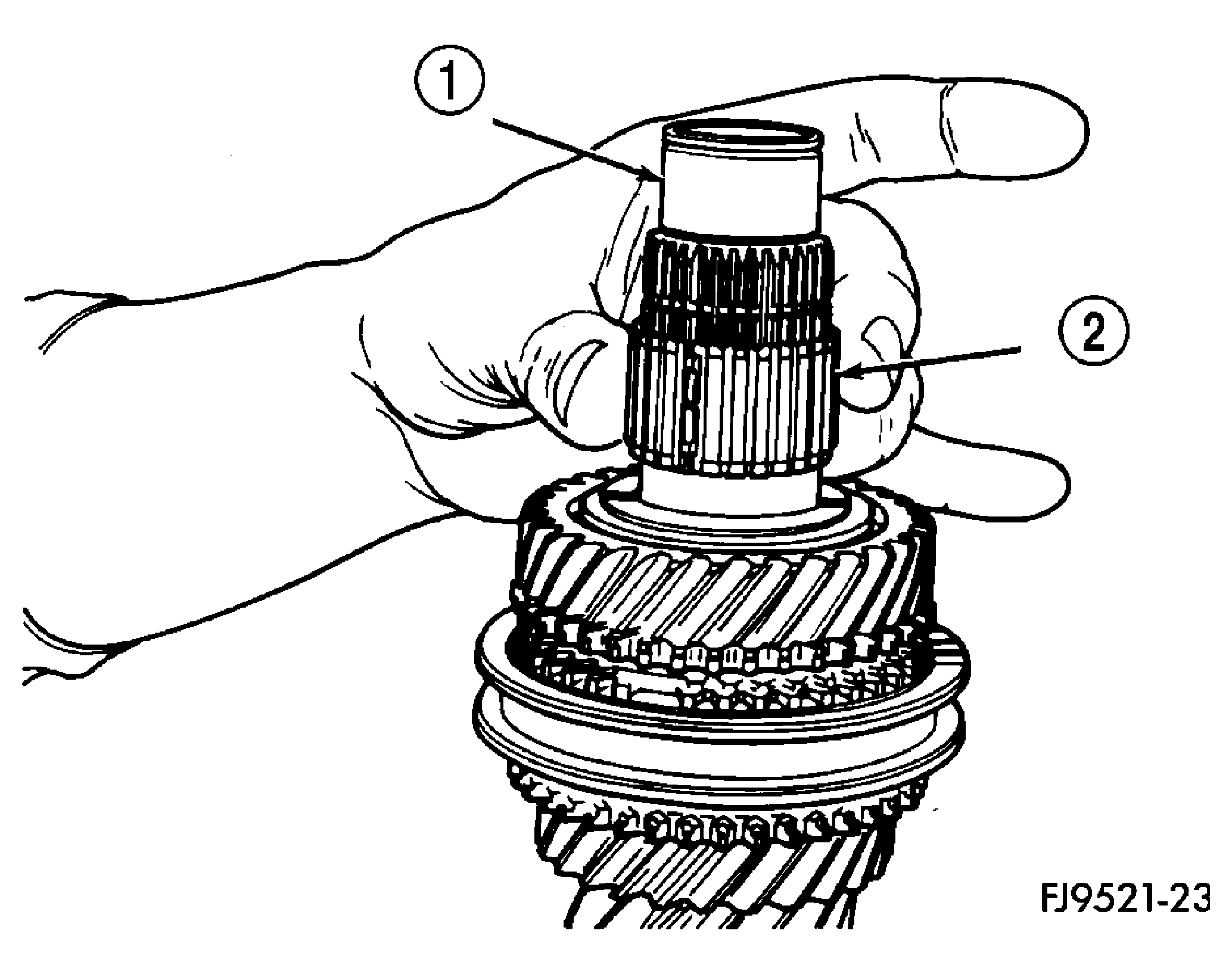

    Fig 6: Removing/Installing Caged Needle Bearing
    GC0020158Courtesy of CHRYSLER LLC
    1 - INPUT SHAFT
    2 - CAGED NEEDLE BEARING
  10. Install 5th gear caged needle bearing (2). See Fig 6.

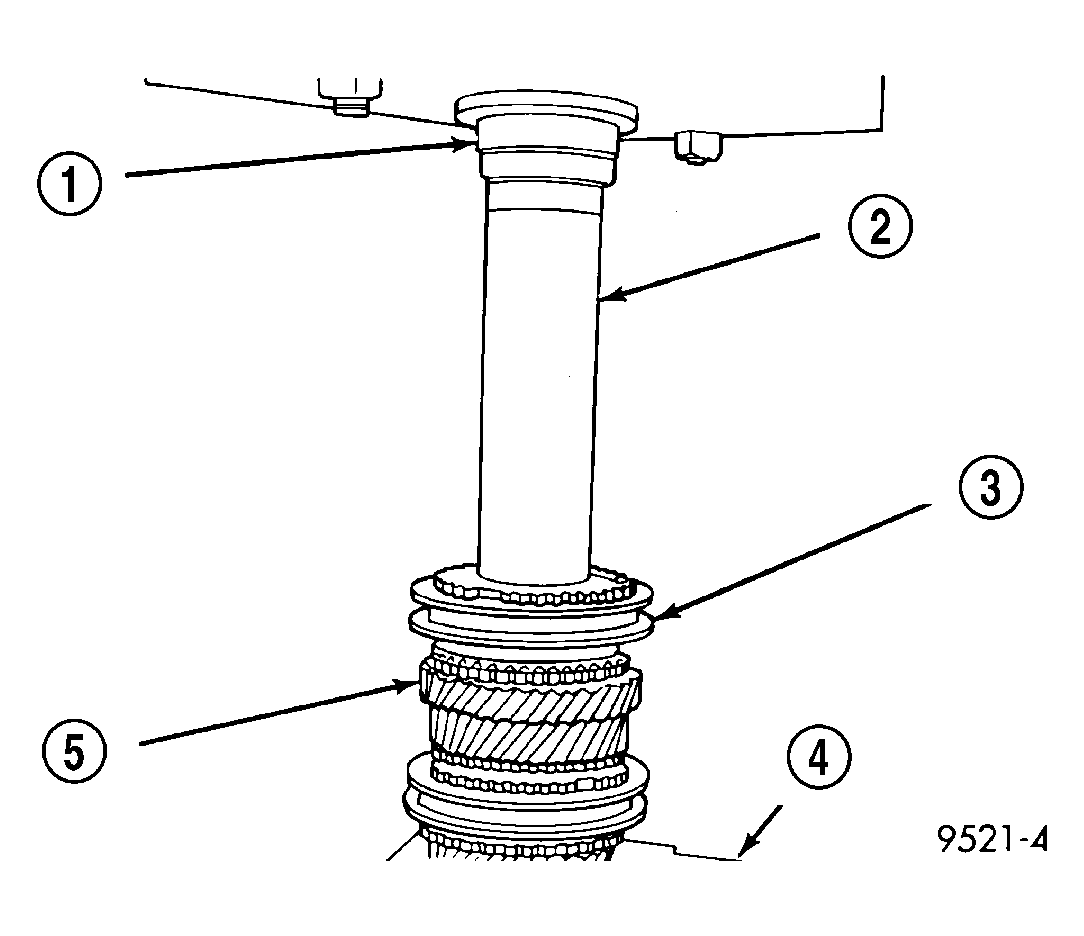

    Fig 7: Installing 5th Speed Gear
    GC0020169Courtesy of CHRYSLER LLC
    1 - PRESS RAM
    2 - SLEEVE C-3717
    3 - SYNCHRONIZER ASSEMBLY
    4 - BEARING SPLITTER
    5 - 5TH SPEED GEAR
  11. Using Sleeve C-3717 (2), install 5th speed gear (5) and synchronizer (3). The 5th gear synchronizer hub has the letter See Fig 7. stamped on the top face of the hub. This designates that the hub must be installed with the facing upward.

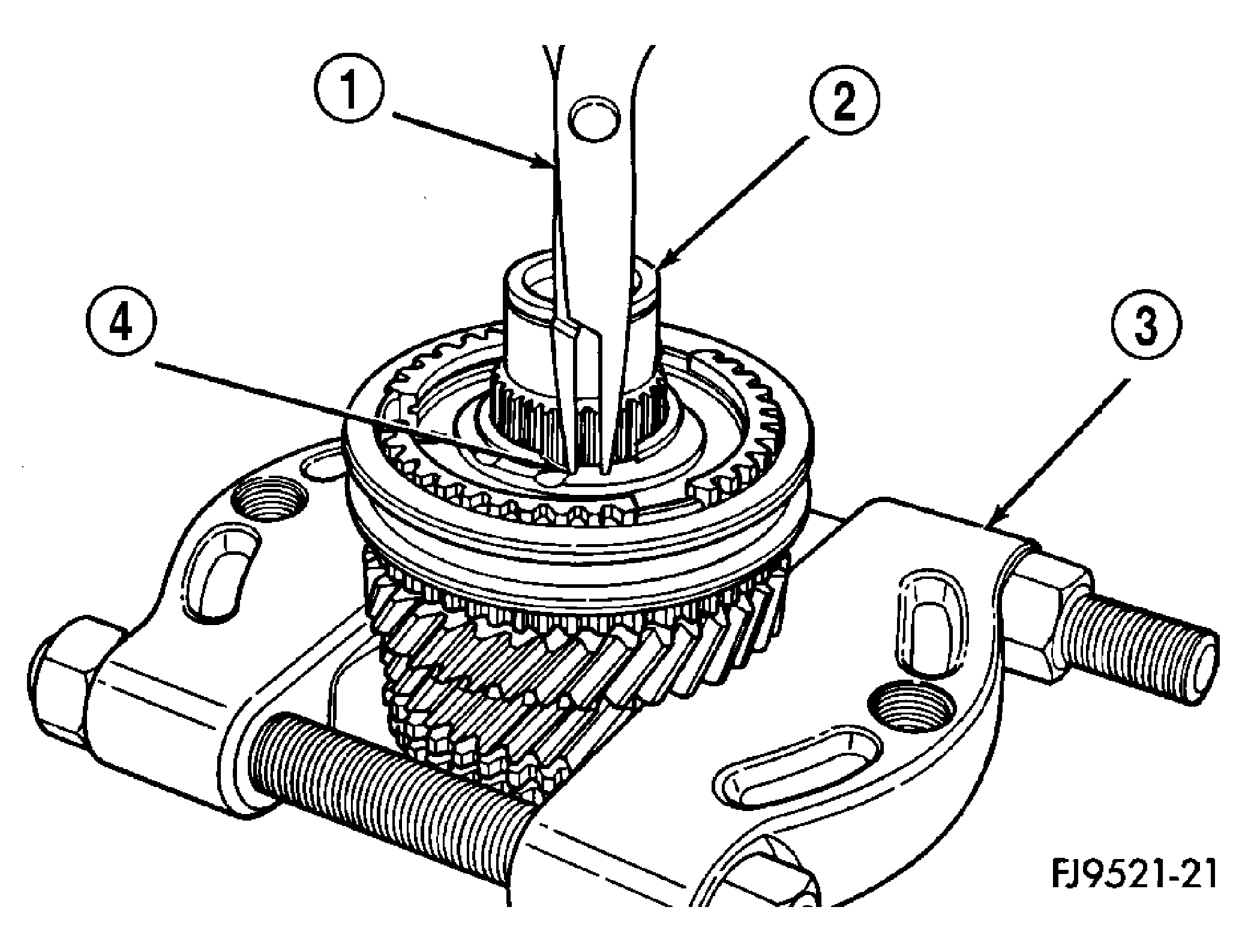

    Fig 8: Removing/Installing 5th Gear Synchronizer Snap Ring
    GC0020156Courtesy of CHRYSLER LLC
    1 - SNAP RING PLIERS
    2 - INPUT SHAFT
    3 - BEARING SPLITTER
    4 - SNAP RING
  12. Install a new  5th gear synchronizer snap ring (4). See Fig 8.
