Boost Pressure Servo Motor Connector End View

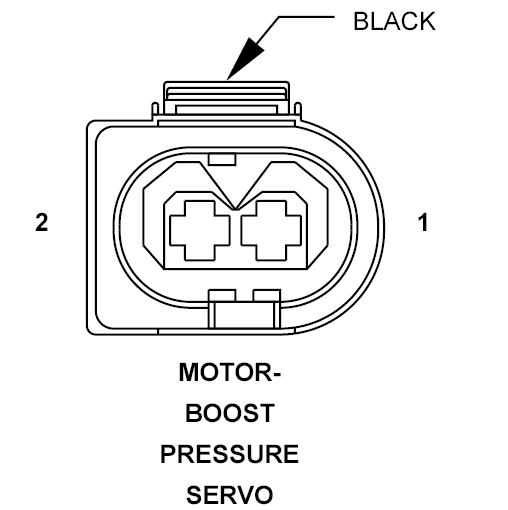

MOTOR-BOOST PRESSURE SERVO - BLACK 2 WAY MALE

GMK880339Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F344 18DB/LB FUSED ASD RELAY OUTPUT
2 K137 20DB/OR BOOST PRESSURE CONTROL
