Engine Block: Frame-Ladder: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

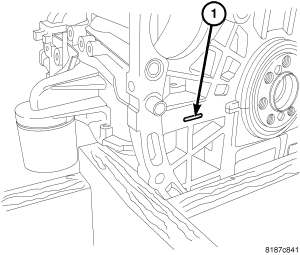

Fig 1: Rear Of Block Ladder Frame Pry Point
GC0054696Courtesy of CHRYSLER LLC
  1. Remove oil pan. See REMOVAL .
  2. Remove balance shaft assembly. See REMOVAL .
  3. Remove ladder frame retaining bolts.
  4. Remove ladder frame using pry point cast in the rear of the block (1).
    Fig 2: Right Side Of Block Ladder Frame Pry Point
    GC0054697Courtesy of CHRYSLER LLC
  5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
