Inline Connector End View (C311 )

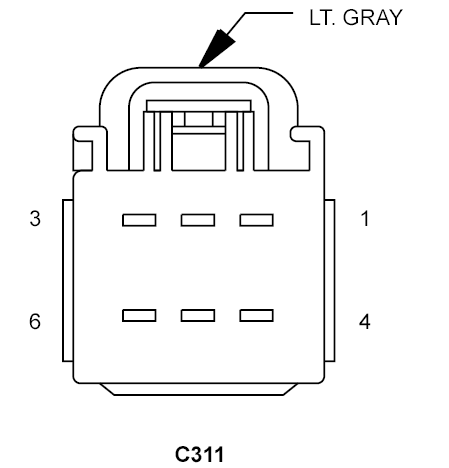

C311 - LT. GRAY 6 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | X214 18DG/DB | AMPLIFIED LIFTGATE SPEAKER 1 (+) |
| 2 | X284 18DG/TN | AMPLIFIED LIFTGATE SPEAKER 1 (-) |
| 3 | X212 18GY/DB | AMPLIFIED LIFTGATE SPEAKER 2 (+) |
| 4 | X282 18GY/TN | AMPLIFIED LIFTGATE SPEAKER 2 (-) |
| 5 | Z960 12BK/LB | GROUND |
| 6 | C515 12LB/OR | REAR WINDOW DEFOGGER CONTROL OUTPUT |

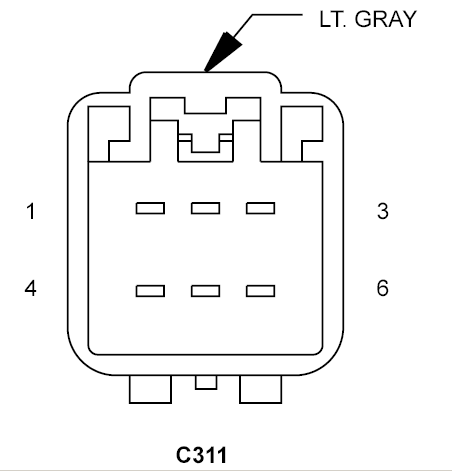

C311 - LT. GRAY 6 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | X214 18DG/DB | AMPLIFIED LIFTGATE SPEAKER 1 (+) |
| 2 | X284 18DG/TN | AMPLIFIED LIFTGATE SPEAKER 1 (-) |
| 3 | X212 18GY/DB | AMPLIFIED LIFTGATE SPEAKER 2 (+) |
| 4 | X282 18GY/TN | AMPLIFIED LIFTGATE SPEAKER 2 (-) |
| 5 | Z960 12BK/LB | GROUND |
| 6 | C515 12LB/OR | REAR WINDOW DEFOGGER CONTROL OUTPUT |
