Cluster Lens

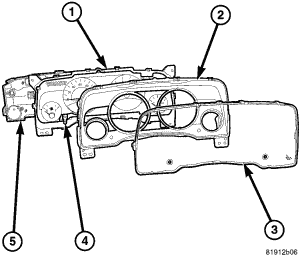

Fig 1: Exploded View Of Instrument Cluster
GC0053437Courtesy of CHRYSLER LLC
  1. Position the cluster lens (3) over the face of the cluster hood and mask unit (2). Be certain that the odometer/trip odometer switch and reconfigurable display switch push buttons (4) are inserted through the proper clearance holes in the lens.
  2. Working around the perimeter of the cluster, press the lens over the face of the hood and mask until each of the nine integral latch features is fully engaged in the receptacles of the hood and mask or the cluster housing (1).
  3. Reinstall the instrument cluster onto the instrument panel. See INSTALLATION .
  4. Reconnect the battery negative cable.
