Generator - 2.0/2.4L

Fig 1: LOWER AIR DAM/BELLY PAN

Courtesy of CHRYSLER LLC

Disconnect and isolate negative battery cable at battery.
Remove the right front wheel.
Remove the underbody air dam.

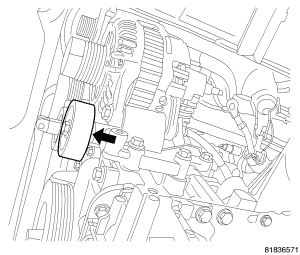

Fig 2: IDLER PULLEY LOCATION
Courtesy of CHRYSLER LLC
Remove the accessory drive splash shield.

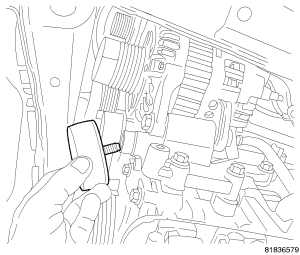

Fig 3: IDLER PULLEY REMOVAL/INSTALL
Courtesy of CHRYSLER LLC
Remove the accessory drive idler pulley.

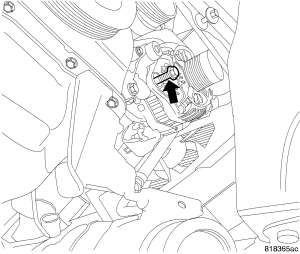

Fig 4: LOWER MOUNTING BOLT
Courtesy of CHRYSLER LLC
Loosen the lower mounting bolt.

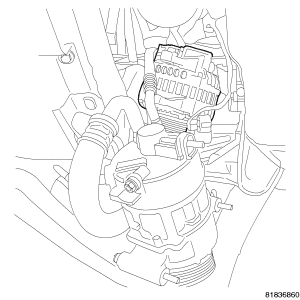

Fig 5: A/C COMPRESSOR RELOCATION
Courtesy of CHRYSLER LLC
Loosen the A/C compressor and relocate, pull down and to outboard side of vehicle to make room to remove generator.

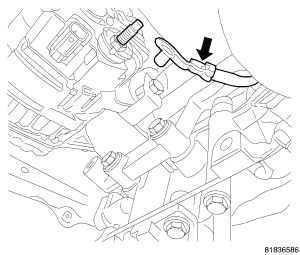

Fig 6: FIELD CONNECTION
Courtesy of CHRYSLER LLC
Unplug field circuit from generator.

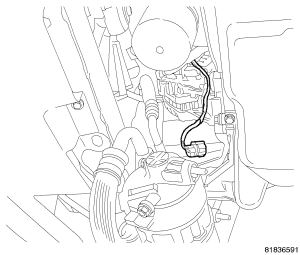

Fig 7: BATTERY CABLE CONNECTION
Courtesy of CHRYSLER LLC
Remove the B+ terminal nut and wire.

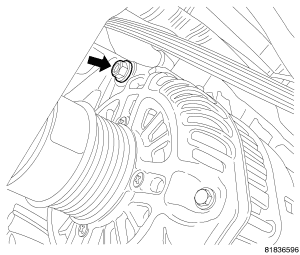

Fig 8: UPPER MOUNTING BOLT
Courtesy of CHRYSLER LLC
Remove the upper mounting bolt.
Remove the generator lower mounting bolt.

Fig 9: BATTERY STUD LOCATION
Courtesy of CHRYSLER LLC
Relocate the battery terminal (1) to the other side of the A/C line (2) for removal of the generator.

Fig 10: ROTATE GENERATOR
Courtesy of CHRYSLER LLC
Rotate generator pulley down.

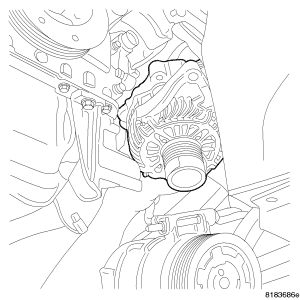

Fig 11: GENERATOR REMOVAL/INSTALLATION
Courtesy of CHRYSLER LLC
Slide generator down and out of vehicle.
