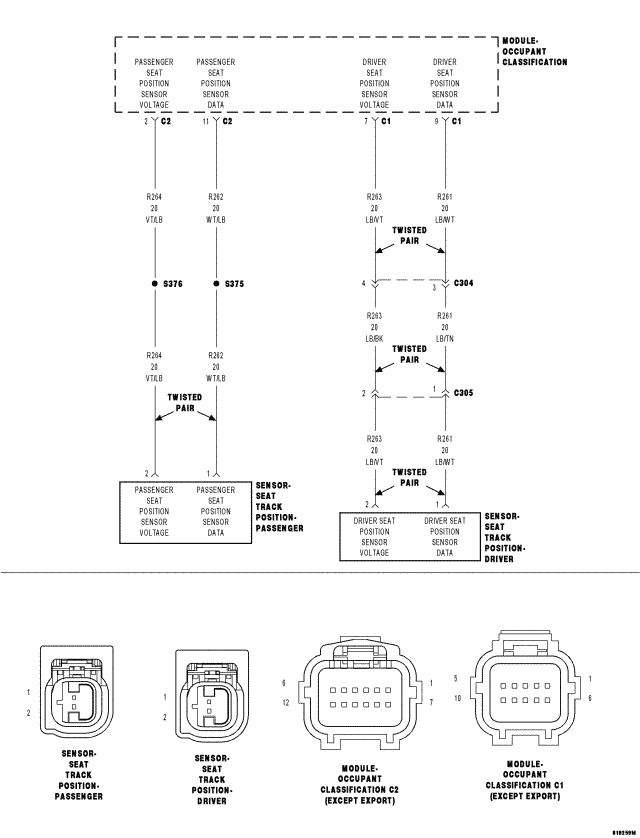

Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> DTCS B1B2A To B1B8D >> B1B8C-Driver Seat Track Position Sensor Circuit Performance >> Circuit Schematic
