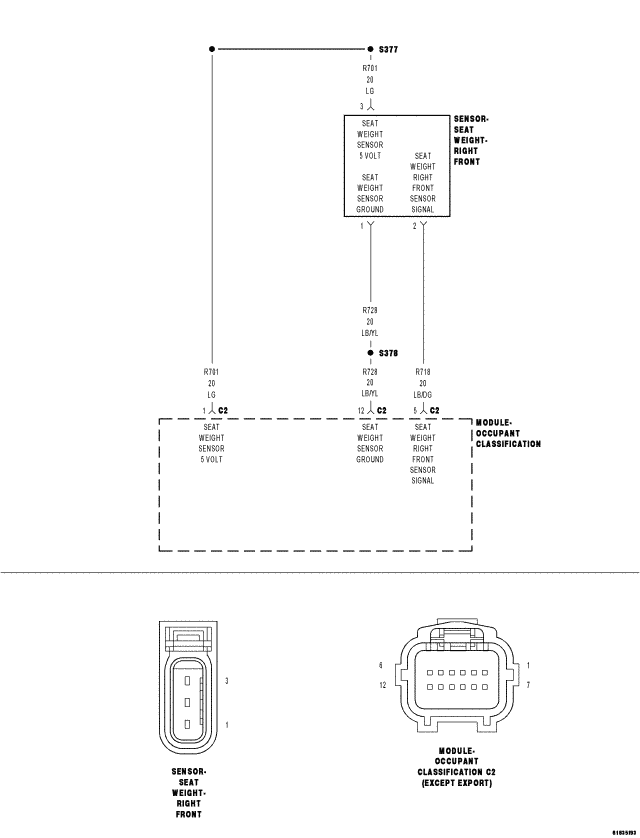

Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> DTCS B1B2A To B1B8D >> B1B7E-Passenger Seat Weight Sensor 2 - Right Front Input Circuit Low >> Circuit Schematic
