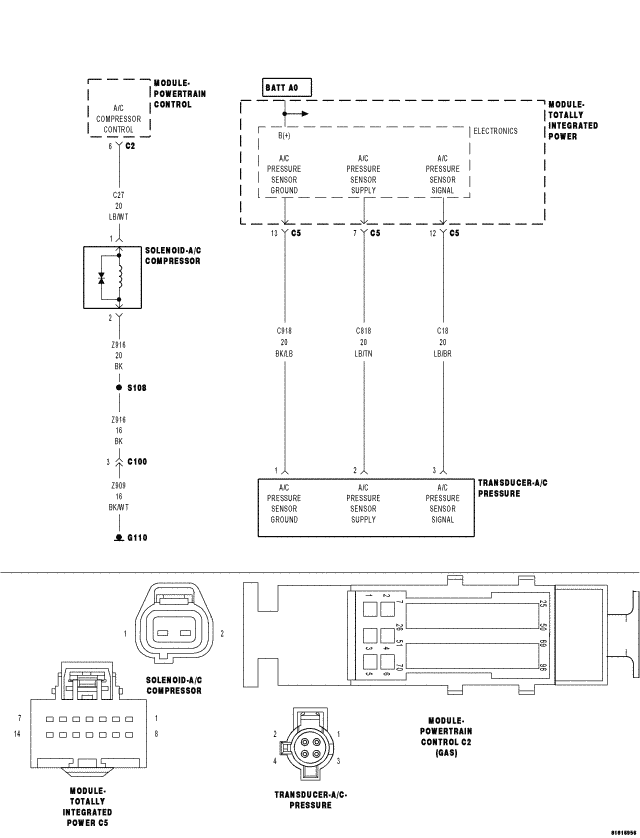

Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DTCS P0626 To P1279 >> P0645-Ac Compressor Relay Open Circuit >> Circuit Schematic
