Circuit Schematic

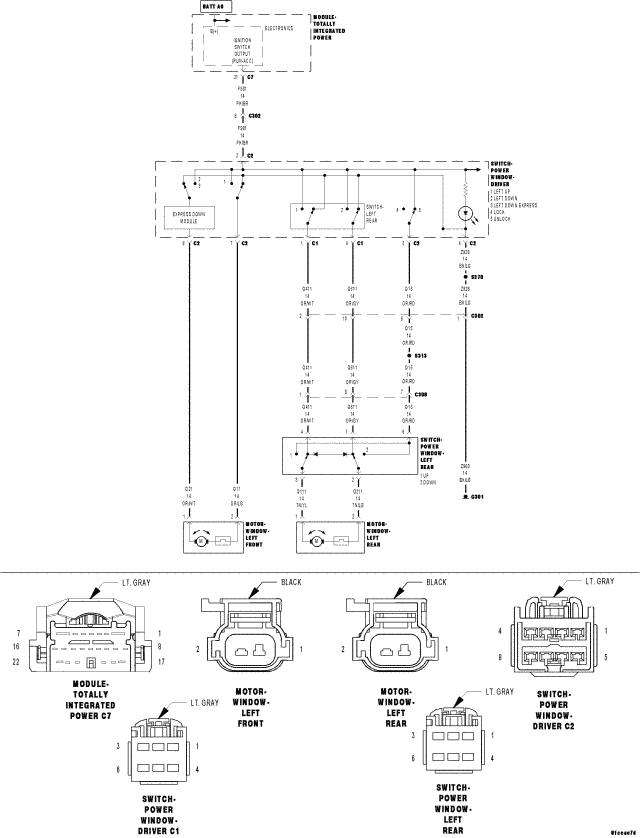

Fig 1: Left Power Window Switch Circuit Schematic
GC0053541Courtesy of CHRYSLER LLC
NOTE: The schematic shows just the Left Rear Window Motor circuit. The other Passenger Window Motor circuits are similar.
