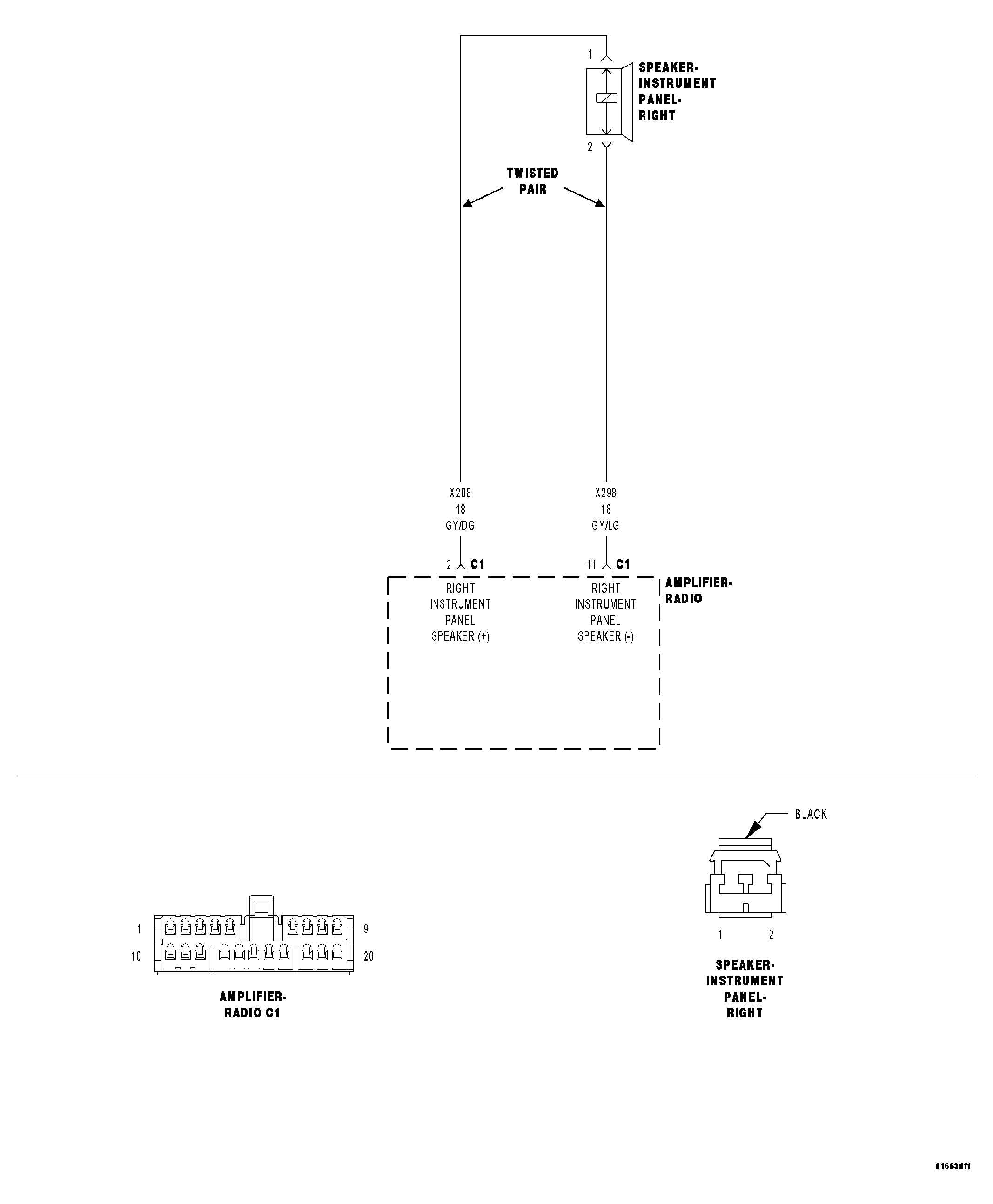

Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio System & Video System - Electrical Diagnostics >> Audio/Video Systems - Electrical Diagnostics >> DTC Troubleshooting >> B1466-Channel 2 Audio Speaker Output Circuit Low >> Circuit Schematic
