Neutral POWERFLOW

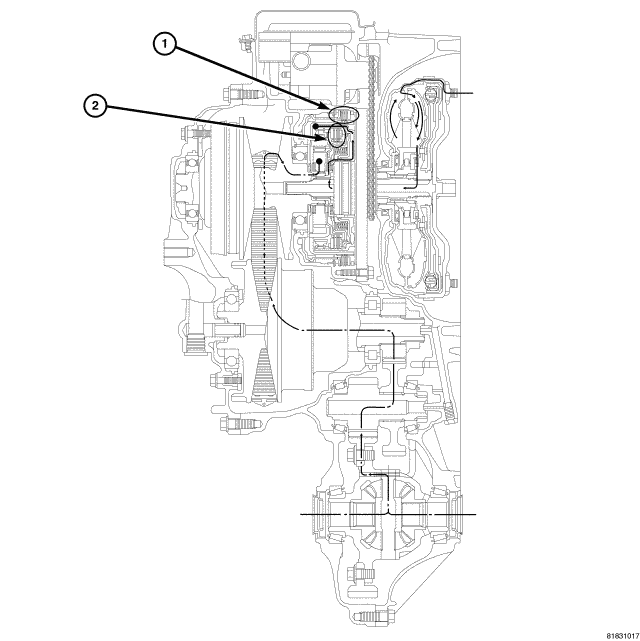

Fig 1: NEUTRAL POWERFLOW

Courtesy of CHRYSLER LLC

1 - REVERSE BRAKE (RELEASED)

2 - FORWARD CLUTCH (RELEASED)

When the forward clutch and the reverse brake are released, the driving force from the engine runs idly and is not transmitted to the primary pulley.

When the forward clutch and the reverse brake are released, the planetary carrier runs idly and the torque from the tires are not transmitted.
