Shift Mechanism

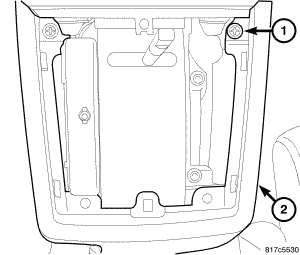

Fig 1: CENTER CONSOLE HOUSING SCREWS

Courtesy of CHRYSLER LLC

Remove shift knob and shift bezel. Refer to REMOVAL .
Remove two screws (1).

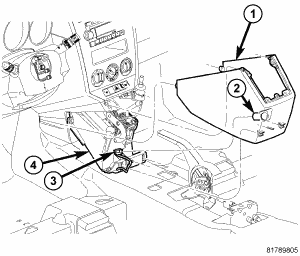

Fig 2: CENTER CONSOLE
Courtesy of CHRYSLER LLC
Pull on side of housing (1) and unsnap housing tabs.
Disconnect console housing wire connector (2) and instrument panel connector (3).
Remove from vehicle.

Fig 3: SHIFTER HOLD DOWN BOLTS
Courtesy of CHRYSLER LLC
Remove the bolts (1) at the shifter.
Separate the shift cable from the shifter.

Fig 4: Shifter
Courtesy of CHRYSLER LLC
Lift the shifter enough to gain access to electrical connector.

Fig 5: ELECTRICAL CONNECTOR AT SHIFTER
Courtesy of CHRYSLER LLC
Unplug the electrical connector at the shifter.
Remove the shifter.
