Shift Mechanism

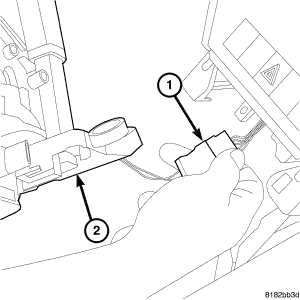

Fig 1: ELECTRICAL CONNECTOR AT SHIFTER

Courtesy of CHRYSLER LLC

Plug the electrical connector in at the shifter.

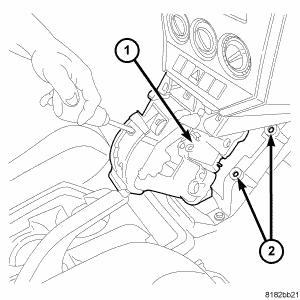

Fig 2: Shifter
Courtesy of CHRYSLER LLC
Install the shifter in place.
Clip the shift cable to the shifter.

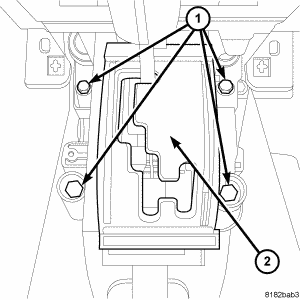

Fig 3: SHIFTER HOLD DOWN BOLTS
Courtesy of CHRYSLER LLC
Install the shifter bolts and tighten to 70 N.m (52 ft. lbs.).

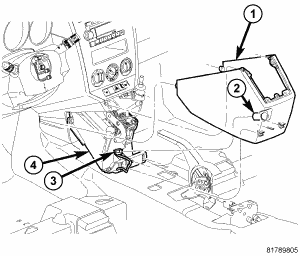

Fig 4: CENTER CONSOLE
Courtesy of CHRYSLER LLC
Place console housing (1) over shifter lever ensuring console tabs seat properly.

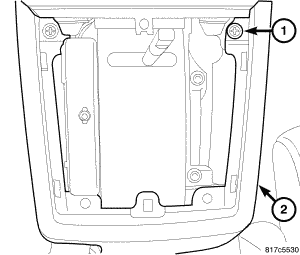

Fig 5: CENTER CONSOLE HOUSING SCREWS
Courtesy of CHRYSLER LLC
Install screws (1).
Replace shift bezel and knob. Refer to INSTALLATION .
