Continuously Variable Transmission (CVT) (Service Information): Installation: Automatic-CVT

NOTE: Refer to the following table when the Transmission Control Module (TCM) and/or transaxle has been replaced to determine if the TCM memory must be erased.

TCM	Transaxle	Erase Memory?
New Module	Not Replaced	Not Required
Not Replaced	Replaced	Relearn Required. Refer to STANDARD PROCEDURE .
Replaced With Used Module	N/A	Relearn Required. Refer to STANDARD PROCEDURE .

NOTE: When CVT transaxle is replaced, an initialization sequence must be performed between the Valve Body Module and the TCM. If the initialization sequence is not performed, transaxle may default into "limp in" mode. Ensure the scan tool you are using has the capabilities and software to perform the initialization sequence.

NOTE: Verify that both dowel pins are present in the engine before installing the transmission.

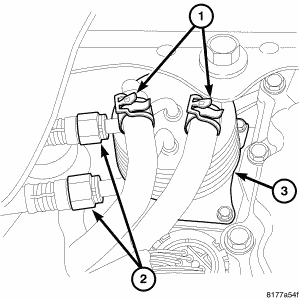

Install the transmission cooler lines (1, 2).

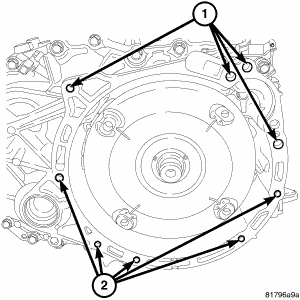

Fig 1: BELL HOUSING BOLT HOLES
Courtesy of CHRYSLER LLC
Install the lower transmission bell housing bolts (2) and tighten to 48 N.m (35 ft. lbs.). See Fig 1.

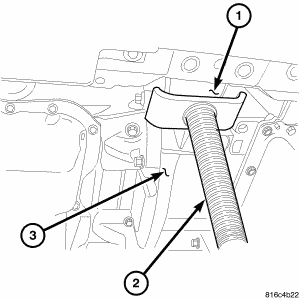

Fig 2: JACK AT TRANS MOUNT
Courtesy of CHRYSLER LLC
Raise the transmission using a screw jack (2). See Fig 2.

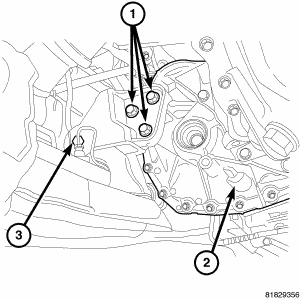

Fig 3: FRONT ENGINE MOUNT
Courtesy of CHRYSLER LLC
Install the transmission crossmember and bolts, (2) tighten to 75 N.m (55 ft lbs.). See Fig 3.
Install the through bolt at the front transmission mount (1) and tighten to 75 N.m (55 ft lbs.).

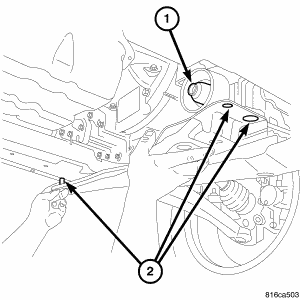

Fig 4: REAR ENGINE MOUNT
Courtesy of CHRYSLER LLC
Install rear mount through bolt (1) and tighten bolt to 75 N.m (55 ft lbs.).

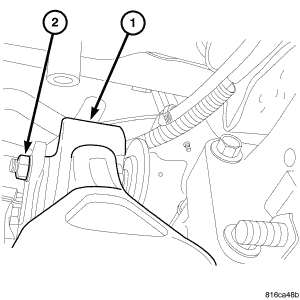

Fig 5: 2WD REAR MOUNT
Courtesy of CHRYSLER LLC
Install rear mount to transaxle and tighten bolts (1) to 75 N.m (55 ft lbs.). See Fig 5.

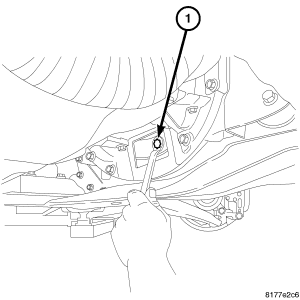

Fig 6: TORQUE CONVERTER BOLTS
Courtesy of CHRYSLER LLC
Install new converter bolts (1) and tighten to 48 N.m (35 ft. lbs.). See Fig 6.

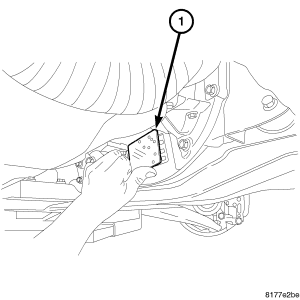

Fig 7: INSPECTION COVER
Courtesy of CHRYSLER LLC
Install cover at torque converter (1). See Fig 7.
Install the PTU if equipped. Refer to INSTALLATION .
Install the right front lower splash shield.
Install the left front lower splash shield.
Install left half and right half shafts to the transaxle. Refer to INSTALLATION .
Install both front wheels. Refer to REMOVAL .

Fig 8: BELL HOUSING BOLT HOLES
Courtesy of CHRYSLER LLC
Lower hoist.
Install upper bell housing bolts (1) and tighten to 48 N.m (35 ft. lbs.).

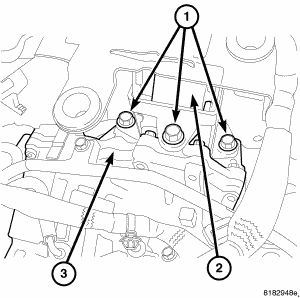

Fig 9: TOP CVT TRANS MOUNT
Courtesy of CHRYSLER LLC
Install the upper mount bolts and tighten to 75 N.m (55 ft lbs.).
Install the upper mount through bolt and tighten 75 N.m (55 ft lbs.).

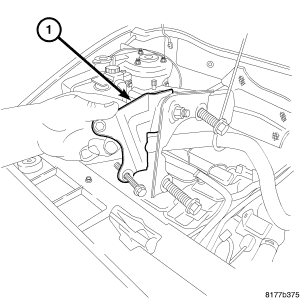

Fig 10: THROTTLE BODY SUPPORT BRACKET
Courtesy of CHRYSLER LLC
Install the throttle body support bracket (1) and tighten to 11 N.m (105 in. lbs.). See Fig 10.

Fig 11: VENT TUBE
Courtesy of CHRYSLER LLC
Connect the transmission vent tube (1). See Fig 11.

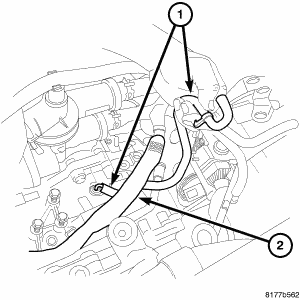

Fig 12: HEATER HOSE TO TRANS COOLER
Courtesy of CHRYSLER LLC
Install the heater hose at transmission cooler tube (3). See Fig 12.

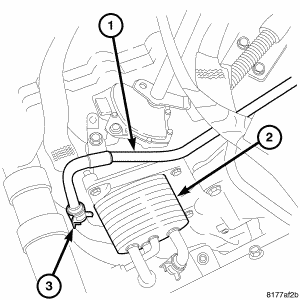

Fig 13: COOLER/TRANS LINES AT COOLER
Courtesy of CHRYSLER LLC
Connect coolant lines at transmission cooler. See Fig 13.

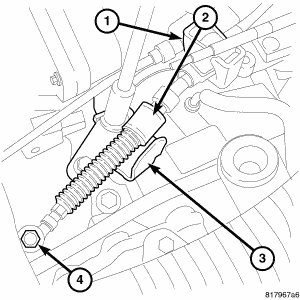

Fig 14: SHIFTER CABLE AND BRACKET
Courtesy of CHRYSLER LLC
Install the shifter cable (1) and bracket (2), tighten nut to 11 N.m (105 in. lbs.). See Fig 14.
Install the vacuum supply lines.

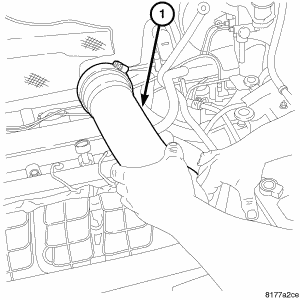

Fig 15: INLET AIR TUBE
Courtesy of CHRYSLER LLC
Install intake air tube (1). See Fig 15.
Fill engine coolant. Refer to STANDARD PROCEDURE .

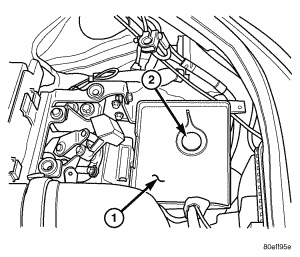

Fig 16: BATTERY TRAY
Courtesy of CHRYSLER LLC
Install the battery tray (1). See Fig 16.
Install the battery.

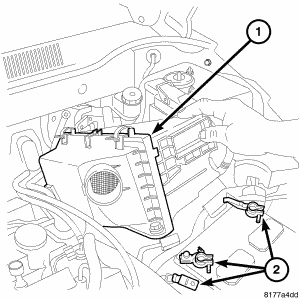

Fig 17: AIR CLEANER ASSEMBLY
Courtesy of CHRYSLER LLC
Install the air cleaner assembly (1). See Fig 17.
Connect battery cables (2).

Fig 18: FILL TUBE
Courtesy of CHRYSLER LLC
Install the transmission fill tube (1) tighten bolt to 9 N.m (79 in. lbs.). See Fig 18.
Fill the transmission with fluid to the correct level.
CAUTION: Use only MOPAR® CVTF +4, use of any other type of automatic transmission fluid may cause damage to the CVT.
Road test vehicle and inspect for leaks.
