Final Drive

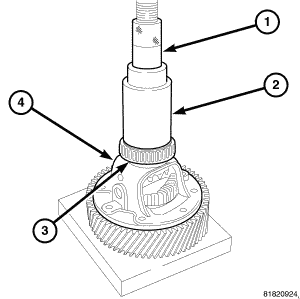

Fig 1: PRESS BEARINGS TO CARRIER

Courtesy of CHRYSLER LLC

Use Installer C-3716 - A and Handle C-4171 to install the bearings onto the carrier (both sides).

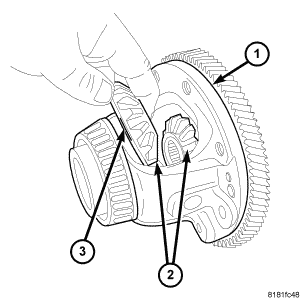

Fig 2: SIDE GEARS
Courtesy of CHRYSLER LLC
Install the side gears (2). See Fig 2and shims (3) onto the carrier.

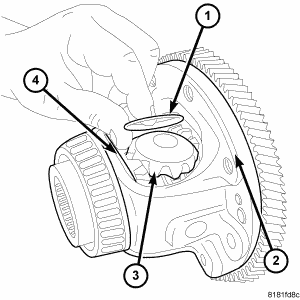

Fig 3: PINION GEAR SHIM
Courtesy of CHRYSLER LLC
Place the pinion gears (3). See Fig 3onto the side gears with the correct shims (1).
Roll into place.

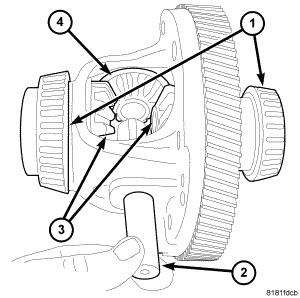

Fig 4: PINION SHAFT
Courtesy of CHRYSLER LLC
Install the pinion shaft (2). See Fig 4.

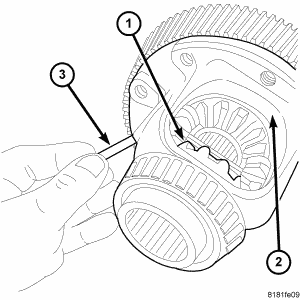

Fig 5: PINION SHAFT ROLL PIN
Courtesy of CHRYSLER LLC
Use a new roll pin (3). See Fig 5.

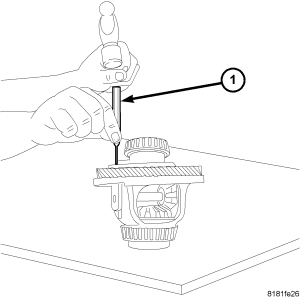

Fig 6: PIN PUNCH AT ROLL PIN
Courtesy of CHRYSLER LLC
Install the roll pin (3) using a pin punch (1). See Fig 6.
