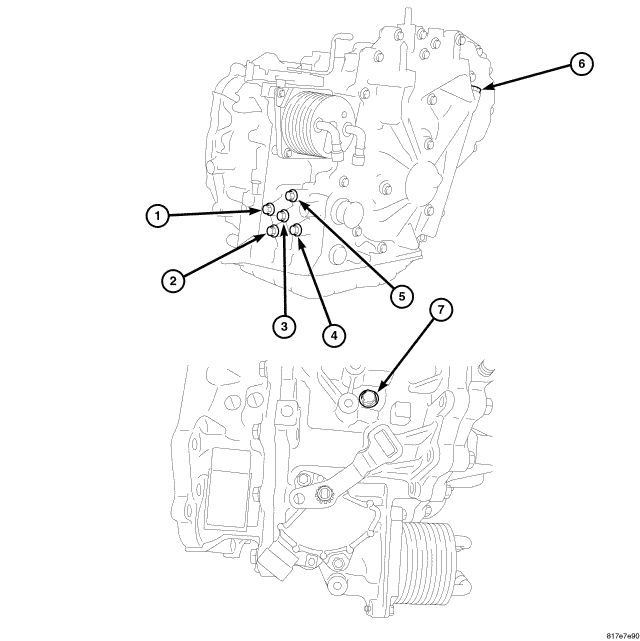

Fluid pressure (minimum - maximum) |
Fluid pressure (measurement reference value) |
Remarks |
| Reference value Mpa (kg/cm2 |
Measurement condition |
Reference value Mpa (kg/cm2) |
- |
| Line pressure |
0.5 - 6.0 (5.1- 61.2) |
Idling |
0.5 - 1.5 (5.1 - 15.3) |
- |
| Forward clutch pressure |
0.1 - 1.5 (1.0 - 15.3) |
Idling (D position) |
0.5 - 1.0 (5.1 - 10.2) |
P, R and N positions: 0 Mpa (0 kg/cm2) |
| Primary pressure |
0.1 - 6.0 (1.0 - 61.2) |
Idling |
0.1 - 1.5 (1.0 - 15.3) |
- |
| Torque converter apply pressure |
0.0 - 1.0 (0.0 - 10.2) |
Lock-up ON: |
0.0 - 0.2 (0.0 - 2.0) |
- |
| Torque converter release pressure |
0.0 - 1.0 (0.0 - 10.2) |
Lock-up OFF: |
0.0 - 0.2 (0.0 - 2.0) |
- |
| Secondary Pressure |
0.1 - 6.0 (1.0 - 61.2) |
Idling |
0.1 - 1.5 (1.0 -15.3) |
- |
| Reverse brake pressure |
0.1 - 1.5 (1.0 - 15.3) |
Idling (R position) |
0.5 - 1.0 (5.1 - 10.2) |
Out of R position: 0 Mpa (0 kg/cm2) |
