Gear Shift Cable

Fig 1: SHIFTER CABLE

Courtesy of CHRYSLER LLC

Install the shifter cable (1, 2) through the bulkhead and into the passenger compartment.

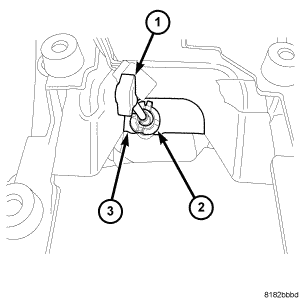

Fig 2: Clip And Cable
Courtesy of CHRYSLER LLC
Install the cable into the bracket (2) at bulkhead (1).

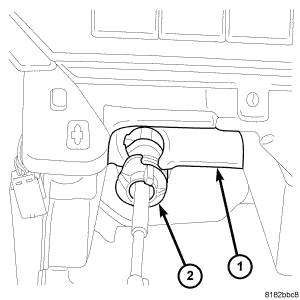

Fig 3: SHIFTER CABLE CLIP AT FLOOR
Courtesy of CHRYSLER LLC
Insure that the cable clips into place.
Tighten the hold down bolts at the air bag module. Refer to INSTALLATION .
Install the shifter. See INSTALLATION .

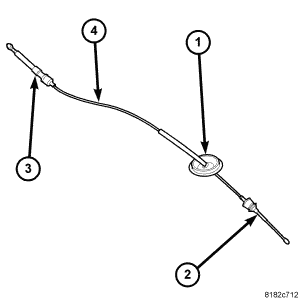

Fig 4: SHIFTER CABLE GROMMET
Courtesy of CHRYSLER LLC
Install the shifter cable grommet (1) at the bulkhead.

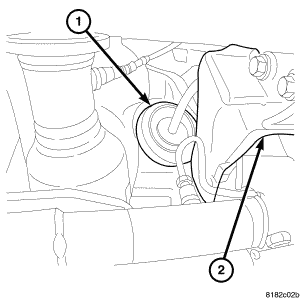

Fig 5: SHIFTER CABLE AND BRACKET
Courtesy of CHRYSLER LLC
Clip the cable (2) into the bracket (1) install the nut (4) over the shifter cable at the transmission shift lever. See ADJUSTMENTS .

Fig 6: AIR CLEANER ASSEMBLY
Courtesy of CHRYSLER LLC
Connect the negative battery cable (2).
Install the air box (1)
