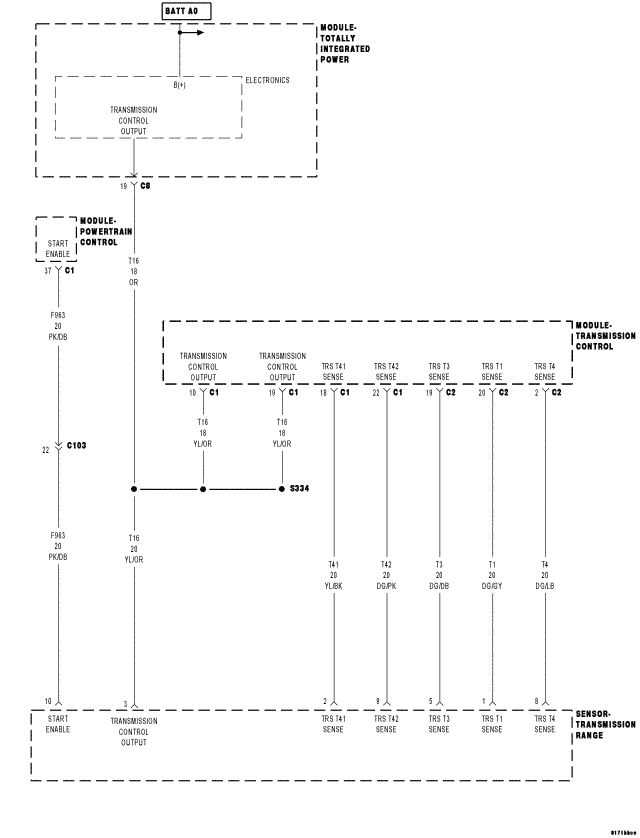

Home >> Jeep >> 2007 >> Compass Limited, AWD, Automatic CVT >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> (Continuously Variable Transmission (CVT) - Electrical Diagnostics) >> CVT - Electrical Diagnostics >> DTC Troubleshooting >> P0708-Transmission Range Sensor Circuit High >> Circuit Schematic
