Compass Limited, AWD, Automatic CVT
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

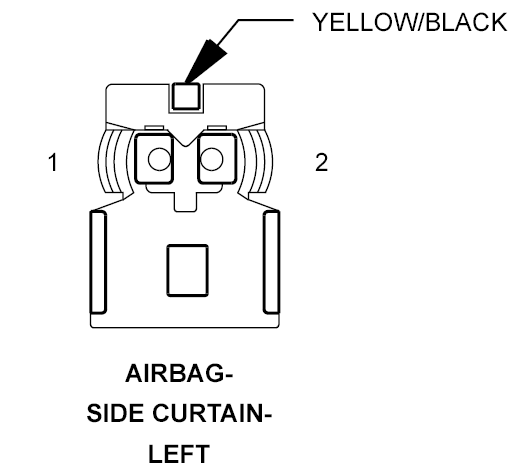

Left Side Curtain Airbag Connector End View
Left Side Curtain Airbag Connector End View
AIRBAG-SIDE CURTAIN-LEFT - YELLOW/BLACK 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R1 20LB/WT
LEFT CURTAIN SQUIB 1 LINE 2
2
R3 20LB/OR
LEFT CURTAIN SQUIB 1 LINE 1
Courtesy of CHRYSLER CORP.
