Radio Antenna (Export) Connector End View

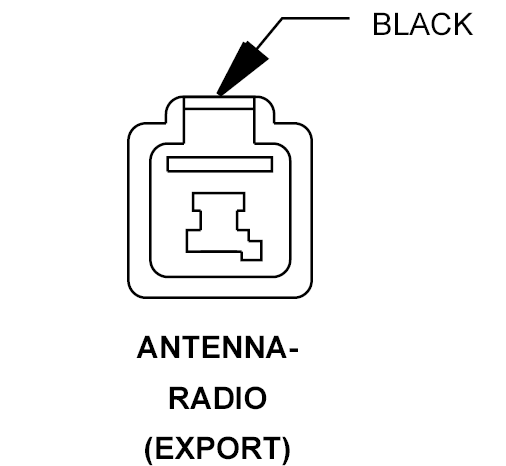

ANTENNA-RADIO - BLACK 1 WAY (EXPORT)

GMK880013Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X60 20GY/RD POWER ANTENNA SIGNAL
