Engine & Automatic Transmission Cooling System: Engine: Pump-Water: Removal: Removal-5.7L

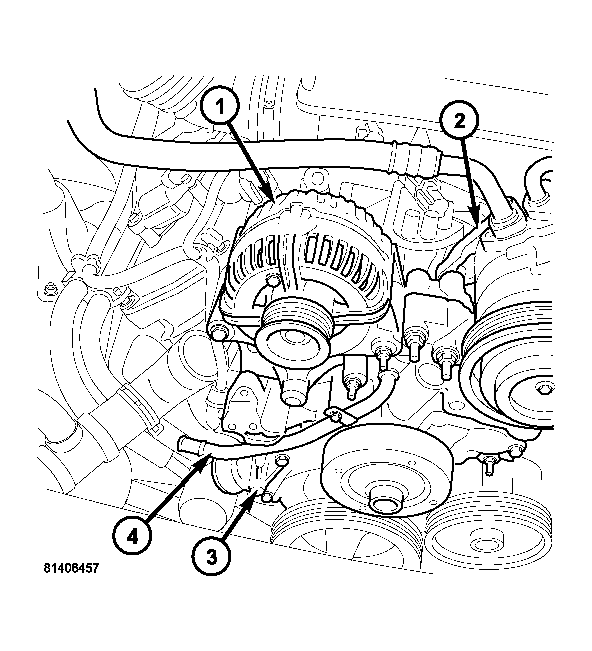

Fig 1: 5.7L Water Pump

Courtesy of CHRYSLER LLC

1 - GENERATOR

2 - A/C COMPRESSOR

3 - WATER PUMP

4 - HEATER BYPASS TUBE

1. Disconnect negative battery cable.
2. Drain coolant.
3. Remove serpentine belt.
4. Remove fan clutch assembly.
5. Remove coolant fill bottle.
6. Disconnect washer bottle wiring and hose.
7. Remove fan shroud assembly.
8. Remove A/C compressor and generator brace.
9. Remove idler pulleys.
10. Remove belt tensioner assembly.
11. Remove upper and lower radiator hoses.
12. Remove heater hoses.
13. Remove water pump mounting bolts and remove pump.
