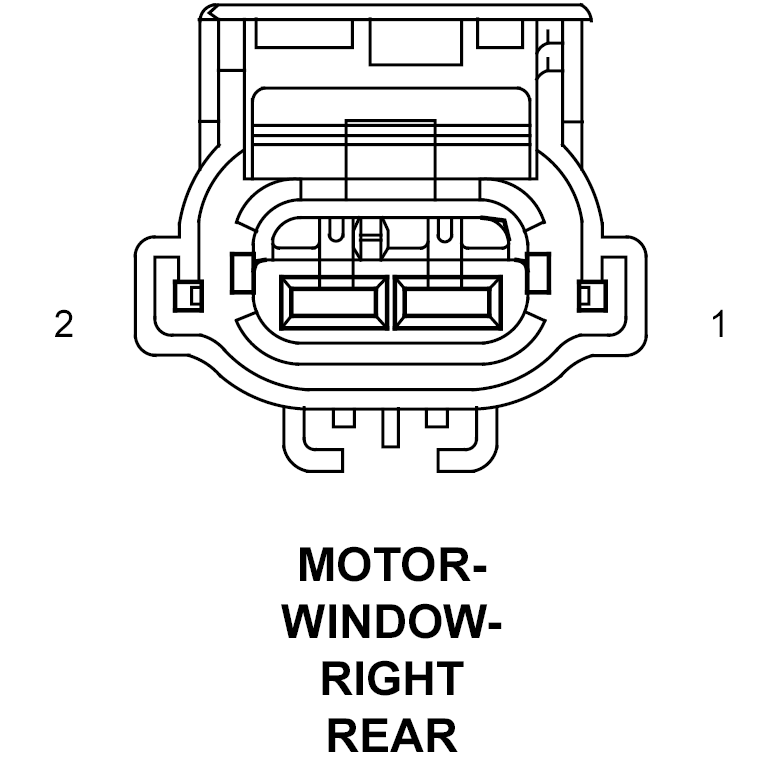

Right Rear Window Motor Connector End View
Right Rear Window Motor Connector End View
MOTOR-WINDOW-RIGHT REAR - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q112 16OR/BR
RIGHT REAR WINDOW DRIVER (UP)
2
Q212 16OR/VT
RIGHT REAR WINDOW DRIVER (DOWN)
