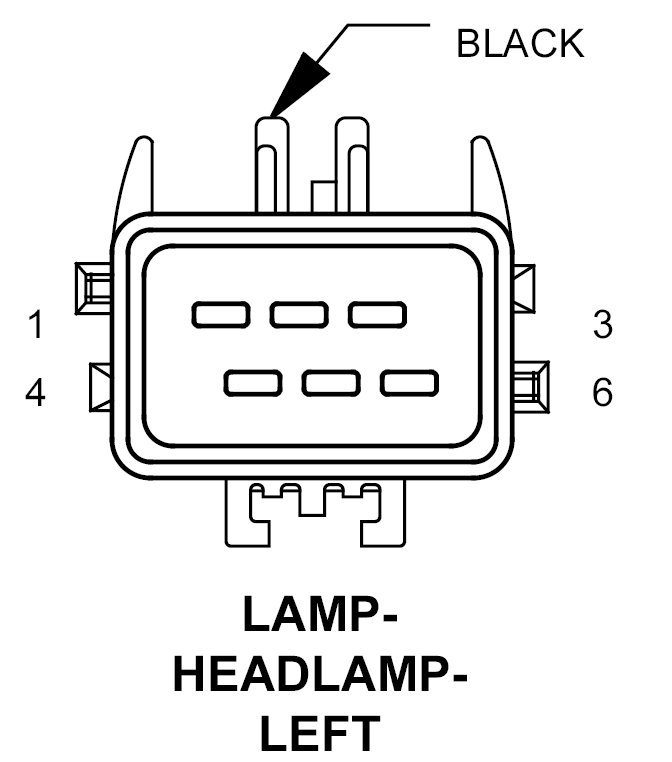

Left Headlamp Lamp Connector End View
LAMP-HEADLAMP-LEFT - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L33 18WT/LG |
LEFT HIGH BEAM DRIVER |
| 2 |
L43 18WT/DB |
LEFT LOW BEAM DRIVER |
| 3 |
L61 20WT/LG |
LEFT TURN SIGNAL |
| 4 |
L777 20WT/VT |
FUSED PARK LAMP RELAY OUTPUT |
| 5 |
L13 20WT/YL |
HEADLAMP LEVEL SENSOR SIGNAL EXPORT |
| 6 |
Z910 18BK/LB |
GROUND |
