Switch-Power Window

The driver and front passenger side power window switch is included in the window/lock switch.   . Refer to REMOVAL for the service procedures.

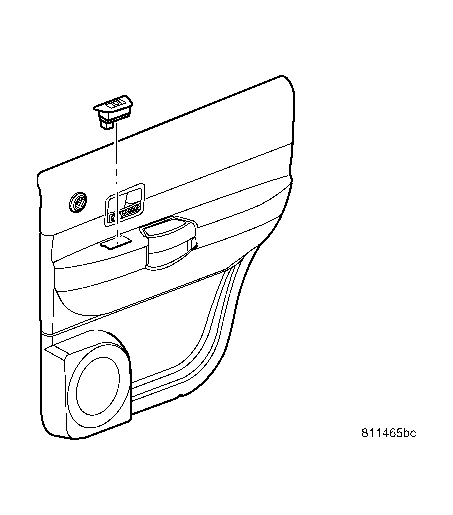

Fig 1: Removal & Installation Of Door Switch
GC0029465Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the door trim panel. Refer to REMOVAL .
  3. Remove switch from door trim panel.
