Flex Plate: Removal: FLEXPLATE

WARNING: This page is about a different variant/trim than selected.

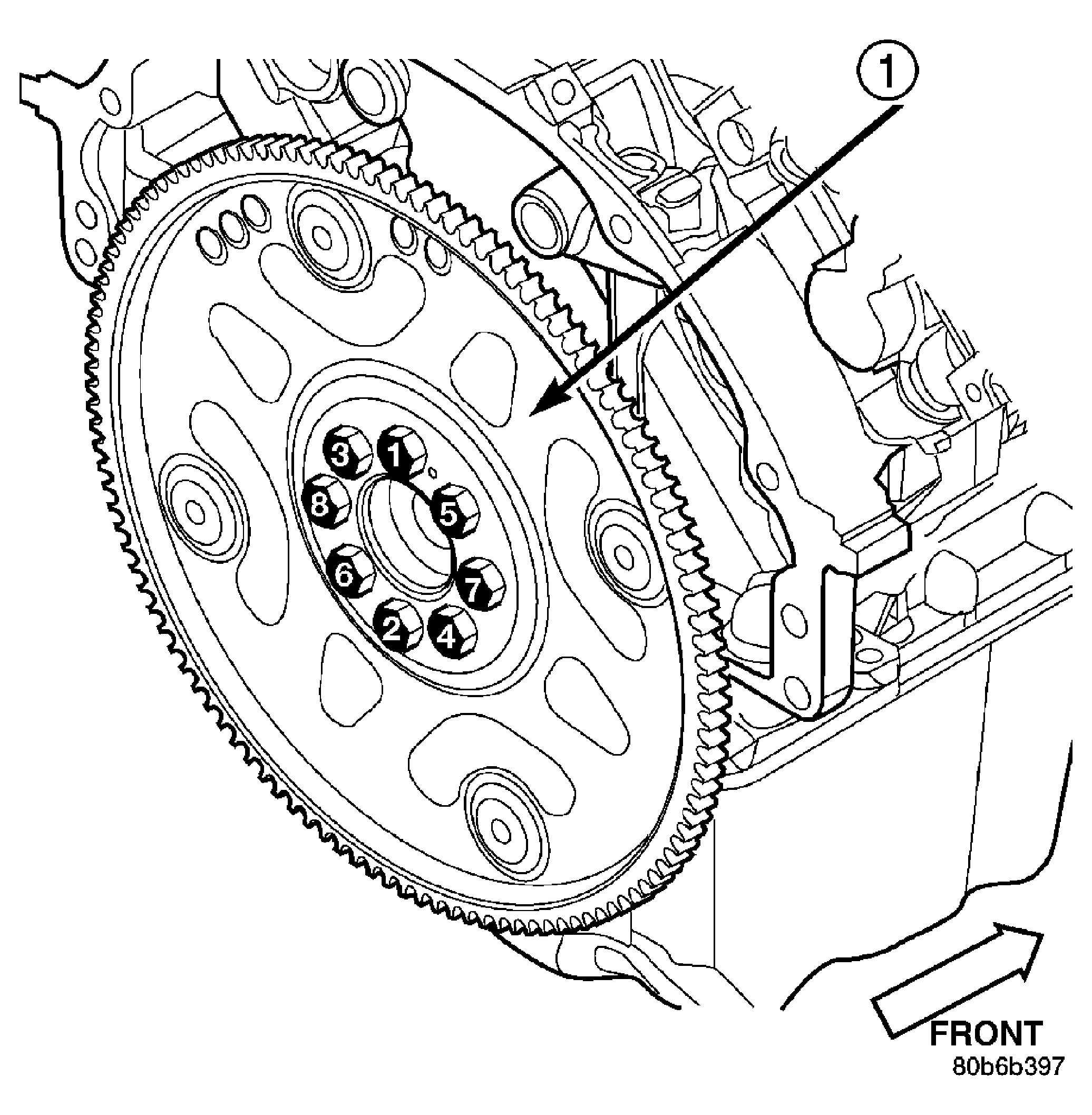

Fig 1: Flexplate Loosening/Tightening Sequence
GC0003829Courtesy of CHRYSLER LLC
1 - FLEXPLATE
  1. Remove the transmission. Refer to REMOVAL .
  2. Remove the bolts and flexplate (1).
