Rear Power Outlet Connector End View

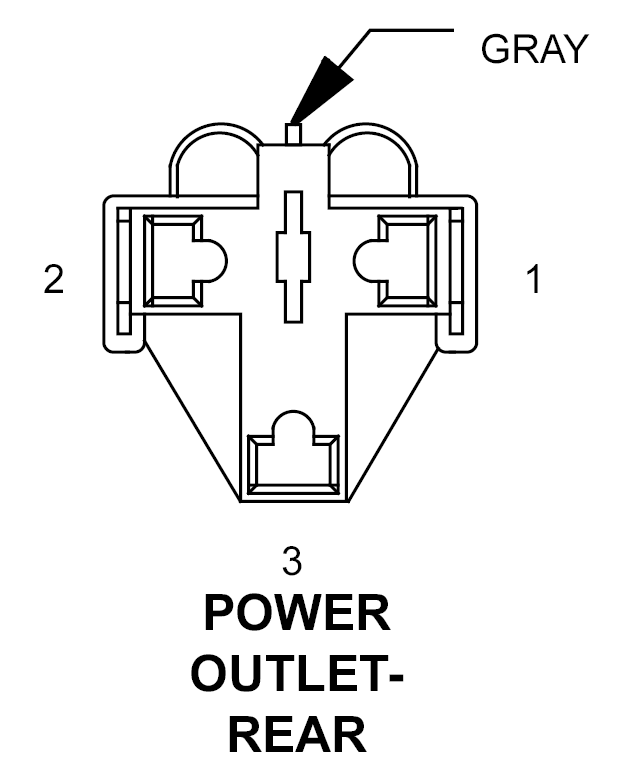

POWER OUTLET-REAR - GRAY 3-WAY

GXK780296Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A205 14RD/OR FUSED B(+)
2 - -
3 Z909 16BK GROUND
