Intermediate Shaft

CAUTION: Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage. Refer to STANDARD PROCEDURE .

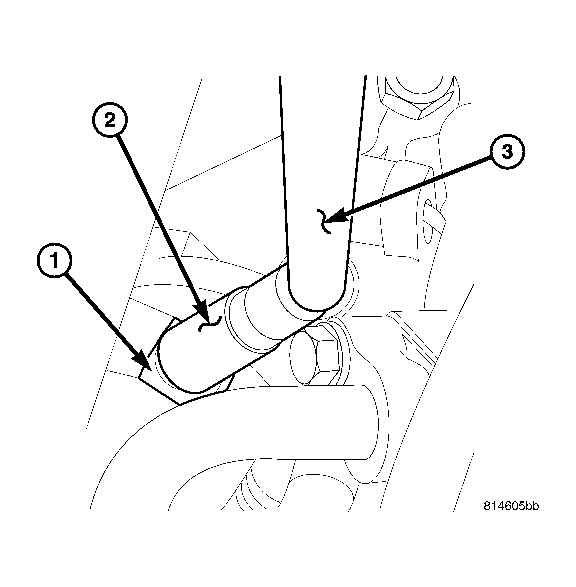

Fig 1: Steering Coupling Pinch Bolt

Courtesy of CHRYSLER LLC

1 - LOWER COUPLING

2 - SOCKET

3 - EXTENSION

Remove the lower coupling (1) pinch bolt using a long extension (3) with a swivel socket (2).

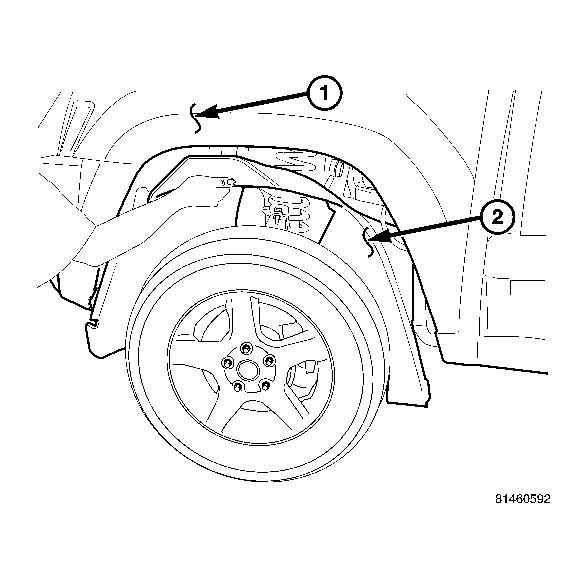

Fig 2: Inner Fender Well
Courtesy of CHRYSLER LLC

1 - FENDER

2 - INNER FENDER WELL
Raise and support the vehicle.
Remove the left inner fender well (2) to gain access to the intermediate shaft.

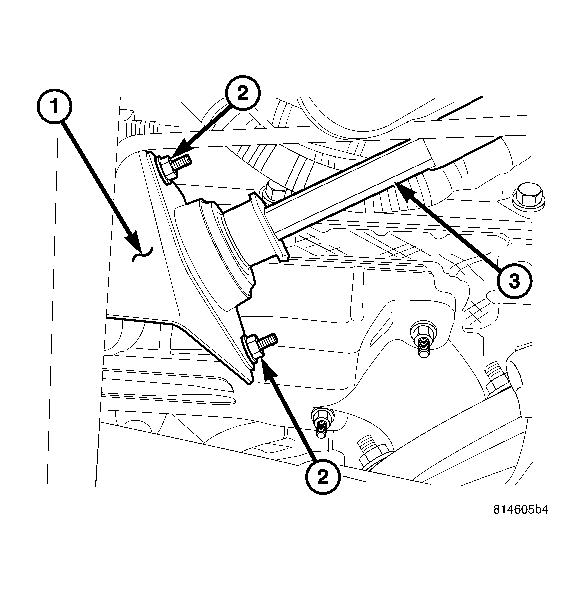

Fig 3: Intermediate Shaft Bearing Bracket
Courtesy of CHRYSLER LLC

1 - BRACKET

2 - NUT

3 - INTERMEDIATE SHAFT
Remove the intermediate shaft bearing nuts (2) from the bracket (1).
Remove the intermediate shaft bearing bracket (1) from the frame.

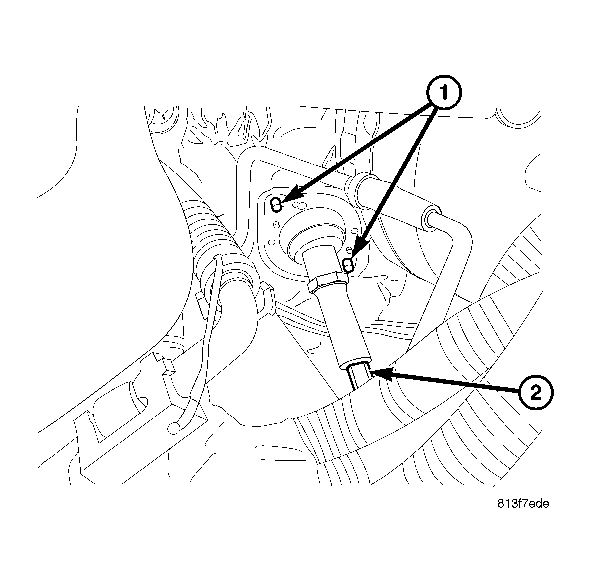

Fig 4: Intermediate Shaft Mounting Nuts
Courtesy of CHRYSLER LLC

1 - MOUNTING NUTS

2 - INTERMEDIATE SHAFT
Remove the intermediate shaft (2) mounting nuts (1) to the bulkhead (The lower nut can be accessed from the inner fender well and the upper can be accessed from the top by the master cylinder).

Fig 5: Removing/Installing Driver Side Hush Panel
Courtesy of CHRYSLER LLC
Remove the hush panel (2).

Fig 6: Removing/Installing Column Access Cover
Courtesy of CHRYSLER LLC

Remove the column access cover (2).

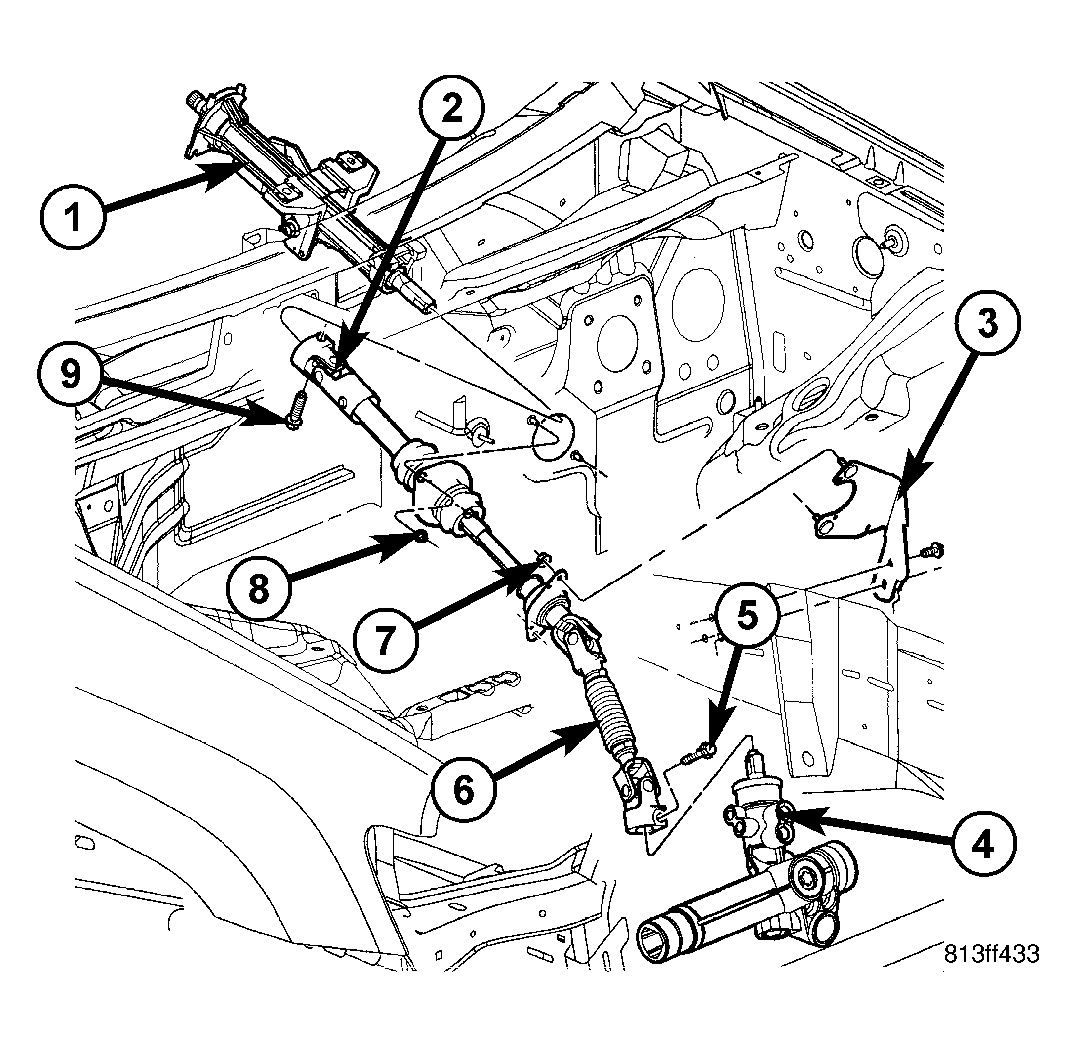

Fig 7: Intermediate Shaft

Courtesy of CHRYSLER LLC

1 - STEERING COLUMN

2 - UPPER COUPLER

3 - BRACKET

4 - STEERING GEAR

5 - LOWER COUPLER BOLT

6 - INTERMEDIATE SHAFT

7 - NUT

8 - NUT

9 - UPPER COUPLER BOLT

Remove the pinch bolt at the upper coupling (2) to the column (1).

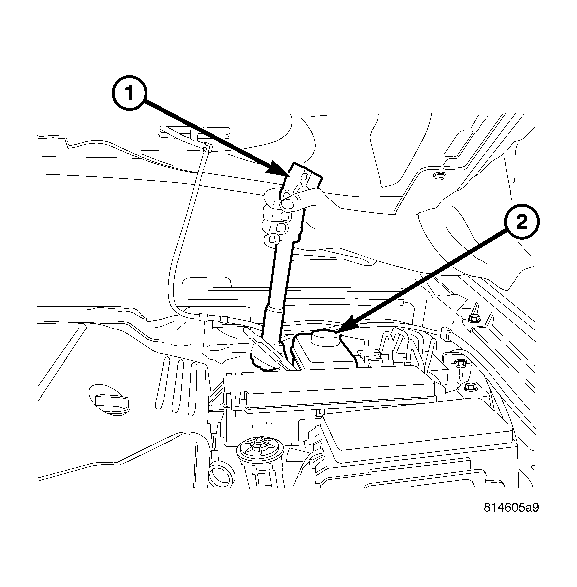

Fig 8: Removing/Installing Intermediate Shaft
Courtesy of CHRYSLER LLC

1 - INTERMEDIATE SHAFT

2 - MASTER CYLINDER
Slide the shaft forward past the lines and then upwards.
Remove the shaft (1) out from the top by the master cylinder (2).
