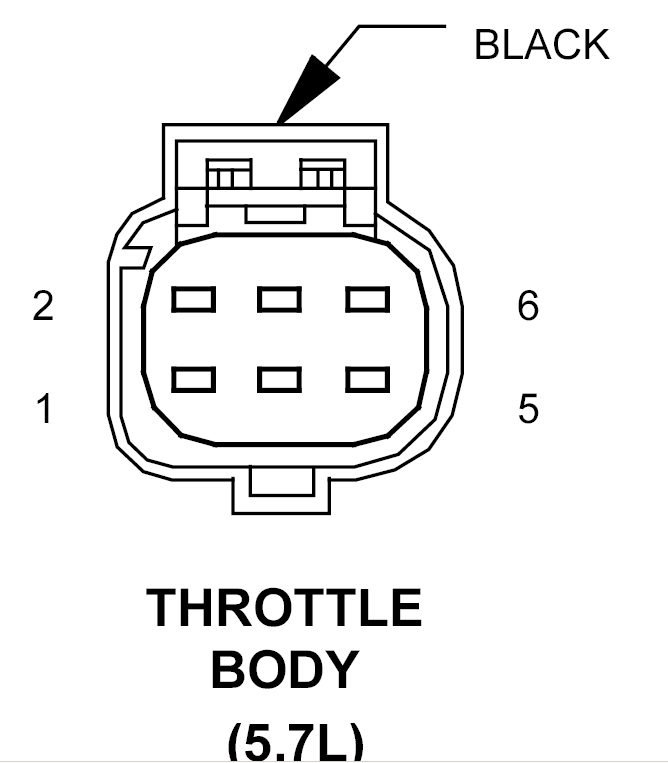

Throttle Body (5.7L) Connector End View
THROTTLE BODY - BLACK 6-WAY(5.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K22 18BR/OR |
TP NO. 1 SIGNAL |
| 2 |
F855 18PK/YL |
5 VOLT SUPPLY |
| 3 |
K124 18DB/GY |
ETC MOTOR (+) |
| 4 |
K122 18BR/DG |
TP NO. 2 SIGNAL |
| 5 |
K126 18DB/LG |
ETC MOTOR (-) |
| 6 |
K922 18BR/DB |
TP SENSOR RETURN |
