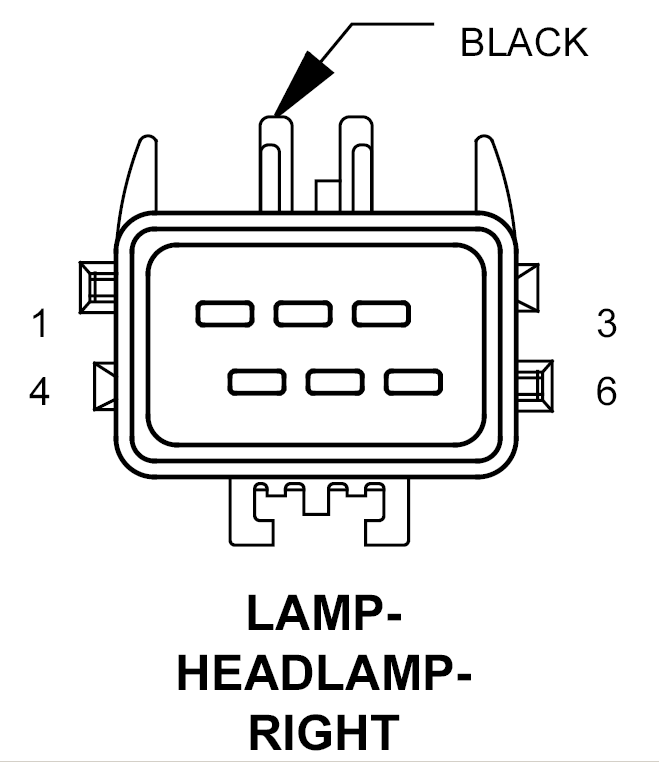

Right Headlamp Lamp Connector End View
LAMP-HEADLAMP-RIGHT - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L34 18WT/GY |
RIGHT HIGH BEAM DRIVER |
| 2 |
L44 18WT/TN |
RIGHT LOW BEAM DRIVER |
| 3 |
L60 20WT/TN |
RIGHT TURN SIGNAL |
| 4 |
L778 20WT/LB |
FUSED PARK LAMP RELAY OUTPUT |
| 5 |
L13 20WT/YL |
HEADLAMP LEVEL SENSOR SIGNAL EXPORT |
| 6 |
Z919 16BK |
GROUND |
