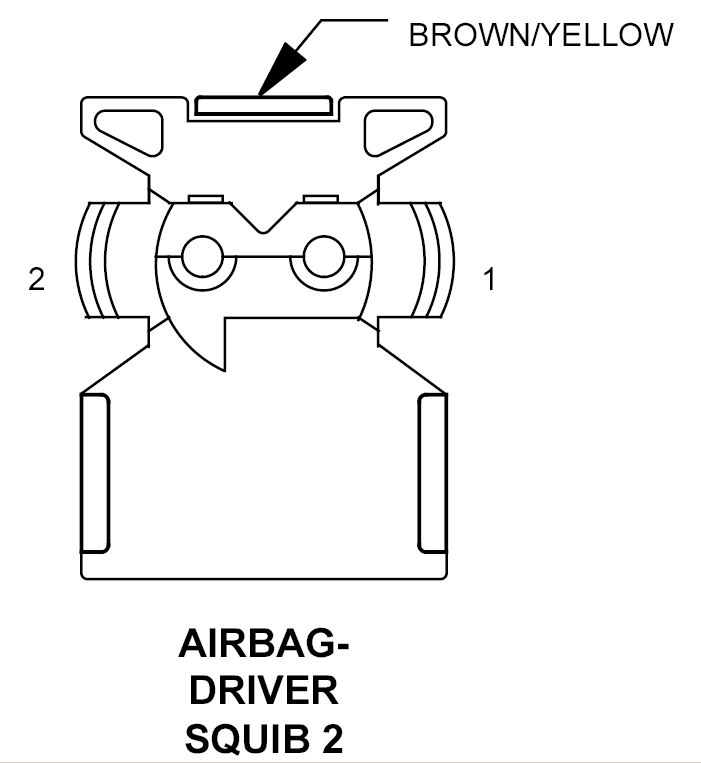

Driver Squib Airbag 2 Connector End View
Driver Squib Airbag 2 Connector End View
AIRBAG-DRIVER SQUIB 2 - BROWN/YELLOW 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R363 20LG/WT
DRIVER SQUIB 2 LINE 1
2
R361 20LG/VT
DRIVER SQUIB 2 LINE 2
Courtesy of CHRYSLER CORP.
