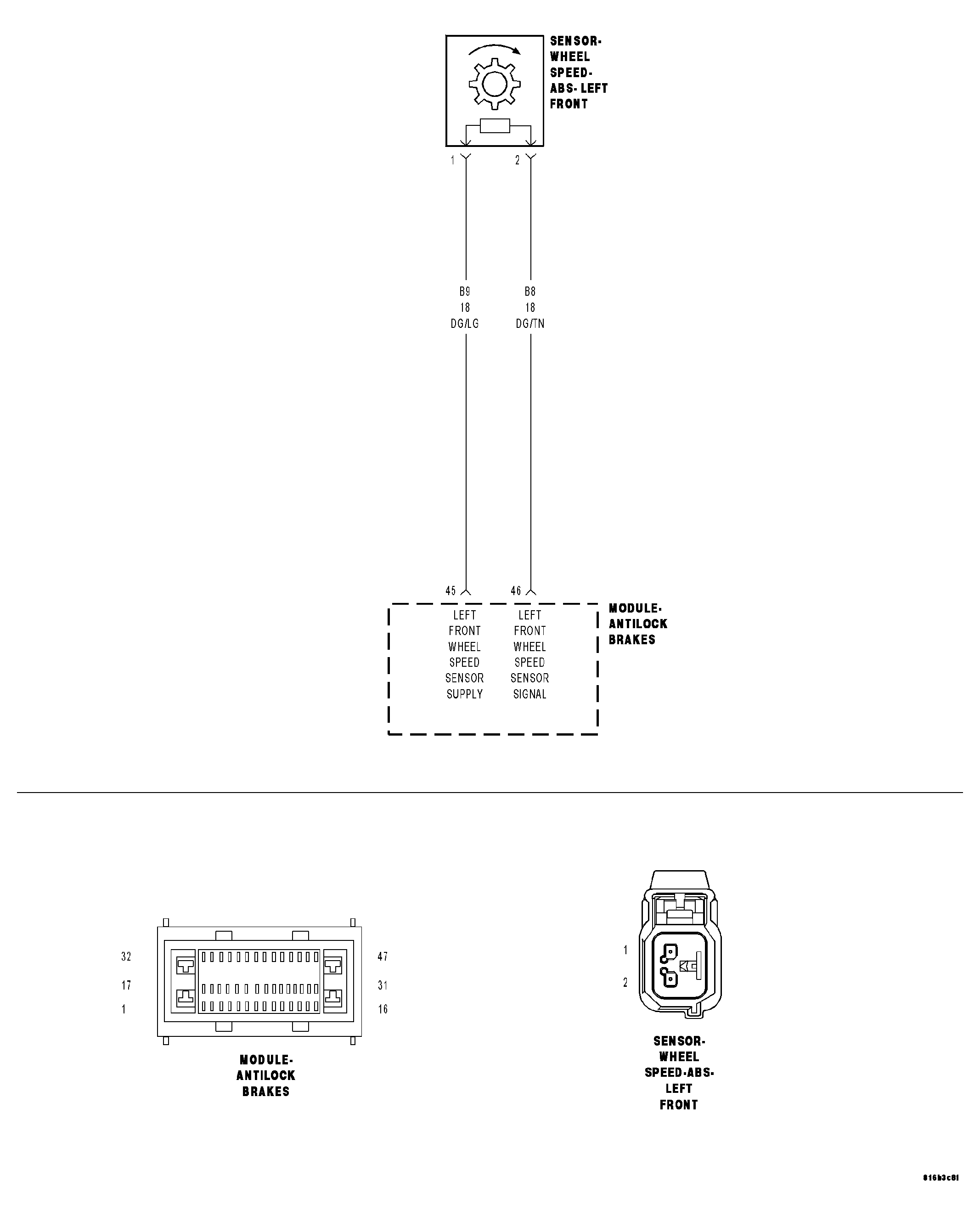

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, RWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> Abs - Electrical Diagnostics >> DTC Troubleshooting >> C100A-Left Front Wheel Speed Sensor Circuit >> Circuit Schematic
