Shift Mechanism

Fig 1: Gearshift and Park Lock Cable at Shifter Assembly

Courtesy of CHRYSLER LLC

1 - SHIFTER ASSEMBLY

2 - ADJUSTMENT NUT

3 - SHIFT CABLE

4 - SHIFT CABLE ATTACHMENT

5 - PARK LOCK CABLE

Remove any necessary console parts for access to shift lever assembly and shifter cables. Refer to REMOVAL .
If necessary, remove the bolts holding the shield, covering the gearshift and park lock cables, to the shifter assembly and remove the shield.
Shift transmission into PARK.
Disconnect the transmission shift cable (3) at shift lever (1). See Fig 1.
Remove the shift cable retainer (4) from the notch in the shifter assembly.

Verify the key is in the LOCK position and disconnect the park lock cable (5) from the shifter mechanism cam and the notch in the shifter assembly.

Fig 2: Shift Lever Assembly and Connectors

Courtesy of CHRYSLER LLC

1 - SHIFTER ASSEMBLY

2 - MAIN CONNECTOR

3 - TRANSFER CASE SWITCH CONNECTOR

Disengage all wiring connectors (2, 3) from the shifter assembly (1). See Fig 2.

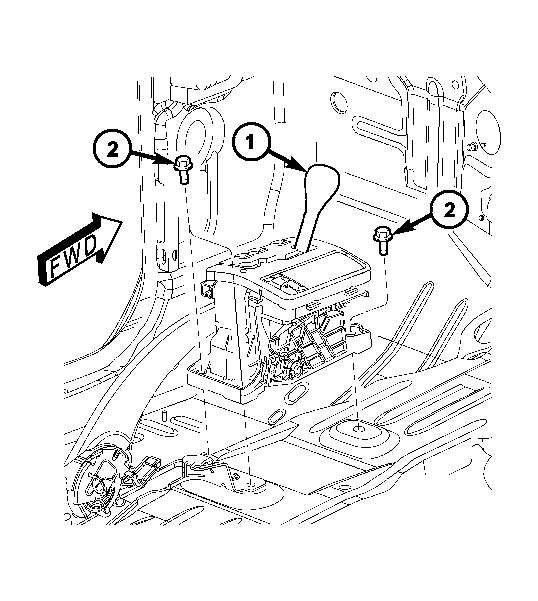

Fig 3: Shifter Assembly
Courtesy of CHRYSLER LLC

1 - SHIFTER ASSEMBLY

2 - BOLTS
Remove all bolts (2) holding the shifter assembly (1) to the floor pan. See Fig 3.
Remove the shifter assembly (1) from the vehicle.
