Transmission Identification

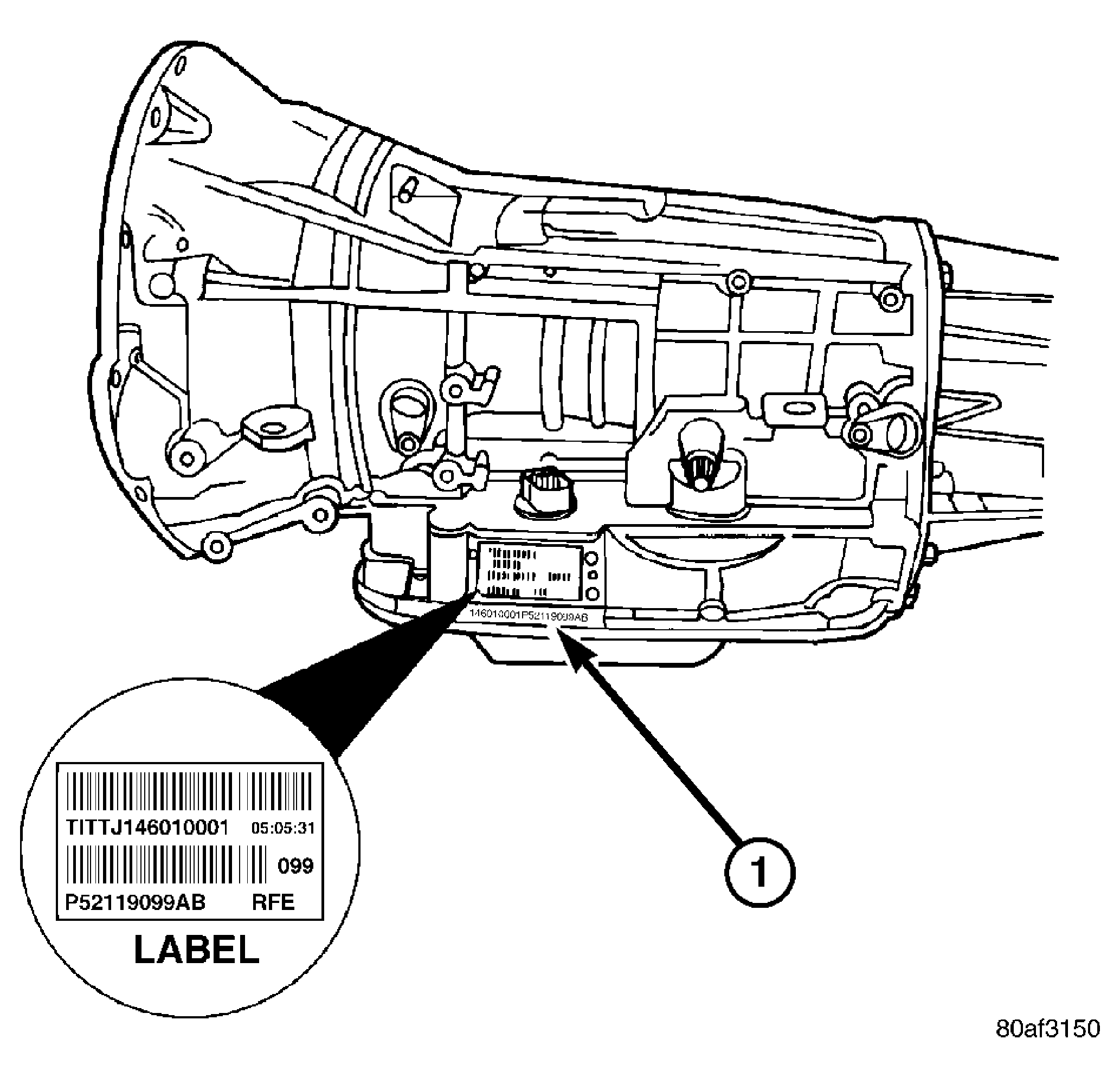

Fig 1: Transmission Part And Serial Number Location

Courtesy of CHRYSLER LLC

Transmission identification numbers are stamped (1) on the left side of the case just above the oil pan sealing surface. Refer to this information when ordering replacement parts. A label is attached to the transmission case above the stamped numbers. The label gives additional information which may also be necessary for identification purposes. See Fig 1.
