Transmission Solenoid/TRS Assembly

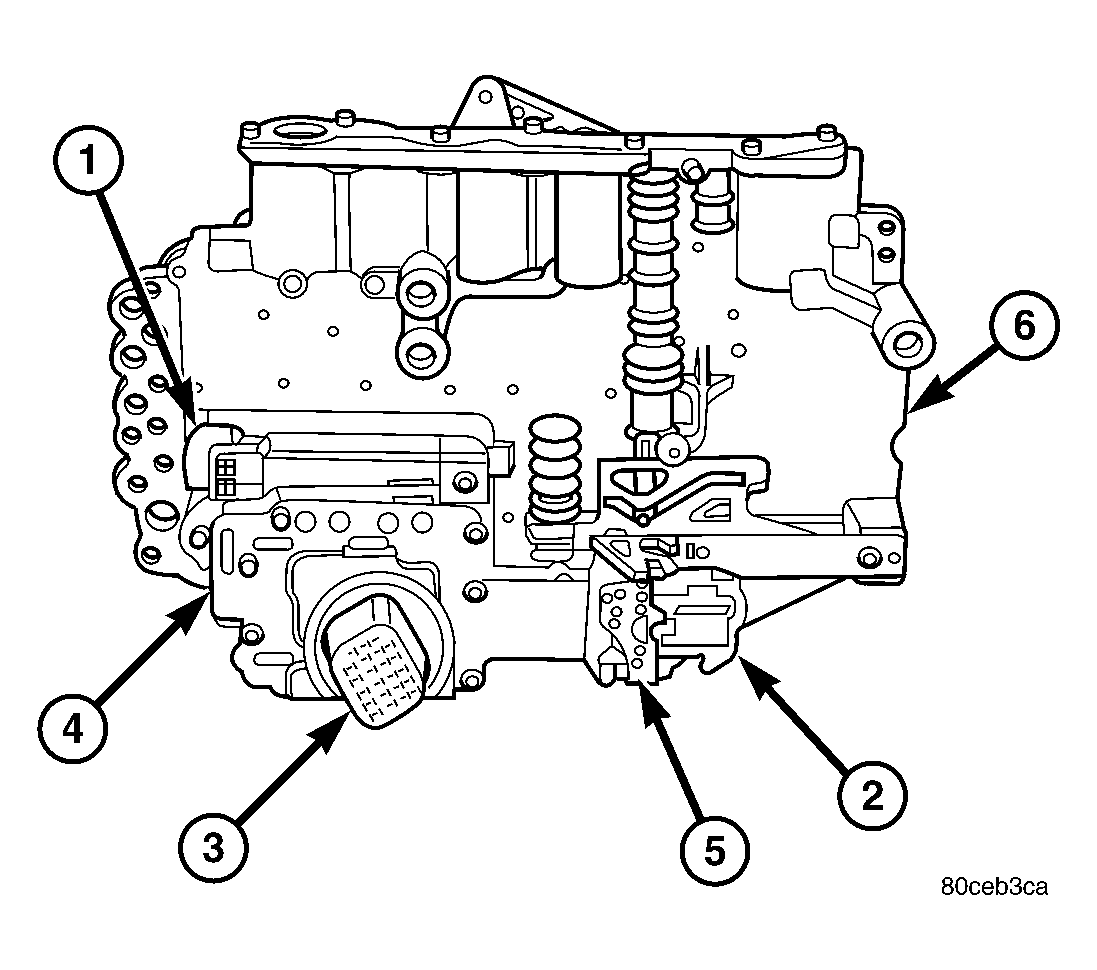

Fig 1: Transmission Solenoid/TRS Assembly

Courtesy of CHRYSLER LLC

1 - PRESSURE CONTROL SOLENOID

2 - TRANSMISSION RANGE SELECTOR PLATE

3 - 23-WAY CONNECTOR

4 - SOLENOID PACK

5 - TRANSMISSION RANGE SENSOR

6 - VALVE BODY

The transmission solenoid/TRS assembly is internal to the transmission and mounted on the valve body assembly. See Fig 1. The assembly consists of six solenoids that control hydraulic pressure to the six friction elements (transmission clutches), and the torque converter clutch. The pressure control solenoid is located on the side of the solenoid/TRS assembly. The solenoid/TRS assembly also contains the Transmission Range Sensor (TRS) and five pressure switches that feed information to the TCM.
