Sensor-Engine Coolant Temperature: Installation: Installation-4.7L

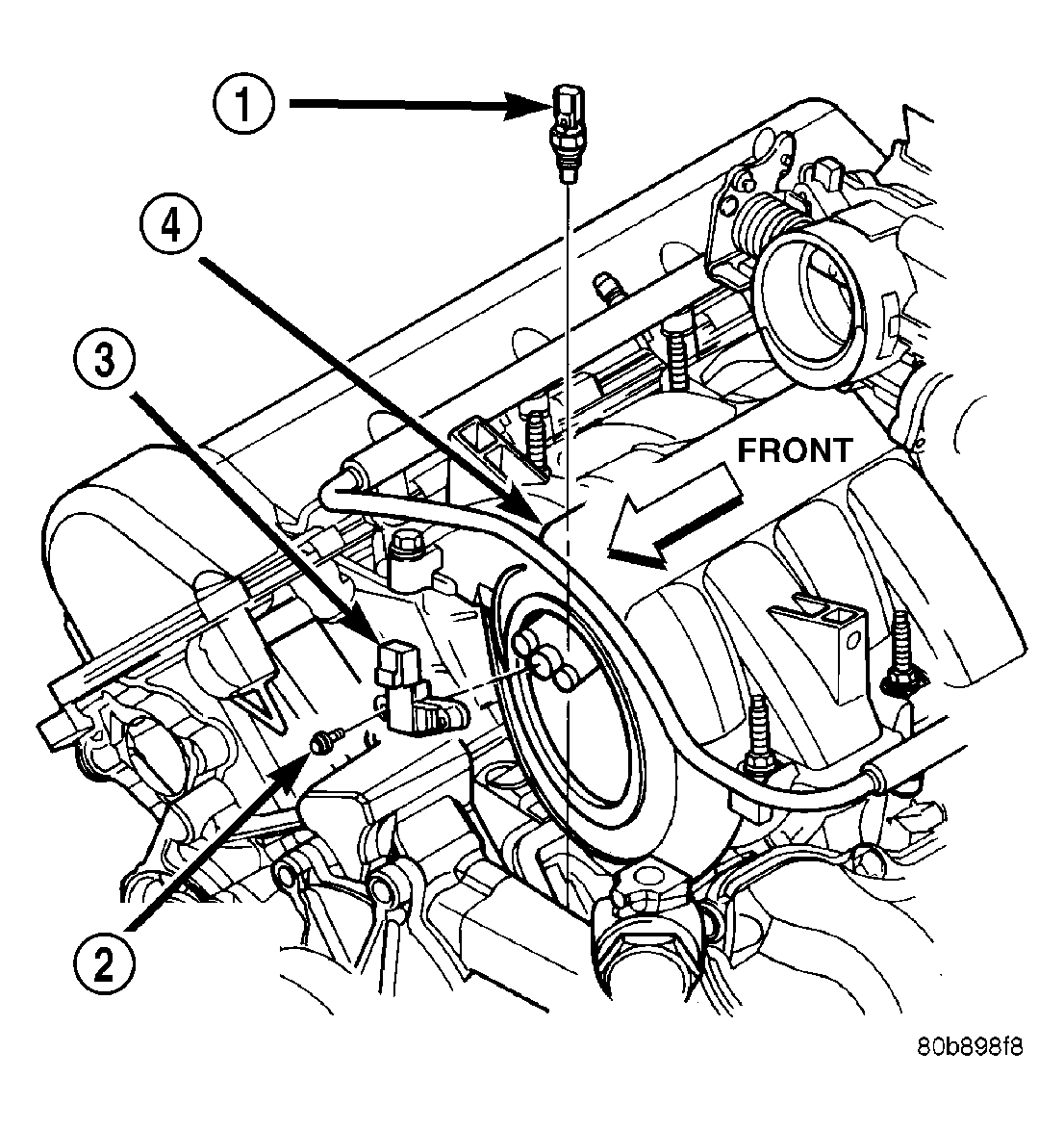

Fig 1: Engine Coolant Temperature Sensor

Courtesy of CHRYSLER LLC

1 - ECT SENSOR

2 - MOUNTING BOLTS (2)

3 - MAP SENSOR

4 - INTAKE MANIFOLD

1. Install sensor.
2. Tighten to 11 N.m (8 ft. lbs.) torque.
3. Connect electrical connector to sensor.
4. Replace any lost engine coolant. See STANDARD PROCEDURE .
